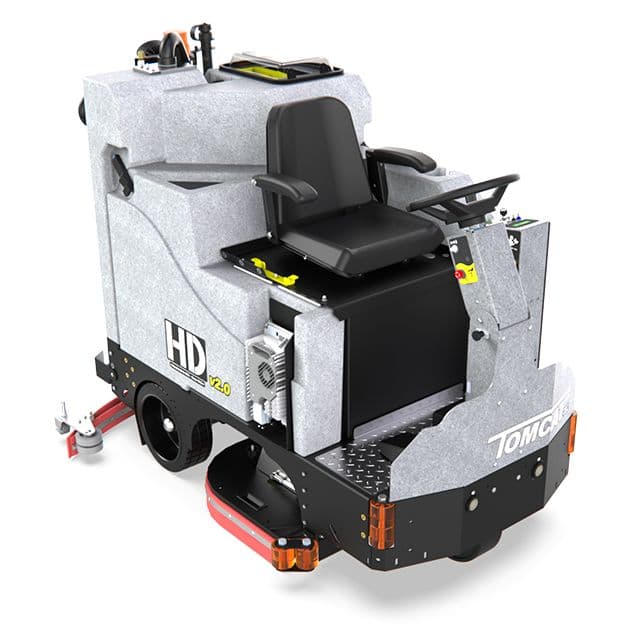

WarrantyThe HD is an industrial grade ride on floor scrubber made for large wide-open areas such as warehouses, and distribution centers. With the capability to clean up to 315,000 square feet per charge its productivity is impressive. With 65-gallons of solution capacity and deck sizes from 40” – 46” operators can clean larger areas in less time.
When using a battery ride on floor scrubber in the harshest cleaning environments, the scrubber needs to be built to withstand. The HD scrubber is purpose built with a 3/16” formed, welded and powder coated steel frame with integrated flip up steel bumper. Tall poly rollers and optional steel protective side doors for impact resistance. A break away stainless-steel squeegee, see through recovery lid, drain saver basket, stainless steel vac screen and patented vac box protection give the operator tools to operate the machine damage free.
Service and maintenance on the HD are simplified with the patented service cabinet, yellow highlighted touch, and maintenance points. The tip back tanks allow the operator and service personnel to access additional maintenance and service areas while standing.
Choose your scrub deck:
Choose your size:
A disk scrub deck is the most versatile for your floor scrubber. With a gimbaled mount that allows a scrub brush to conform to uneven floors, it offers exceptional performance. For flat, smooth, finished floors, a pad holder and disposable floor scrubber pads can be used. For textured and uneven floors, you can choose from a wide variety of scrub brush fibers and grits, tailored to your surface and soil combination.
You be the Judge
Judge for yourself, see the Tomcat difference
Applications
Tomcat serves a wide variety of industries
Media
Tomcat floor scrubbers in action
Popular Options

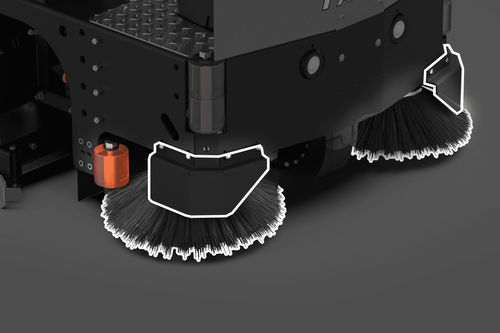

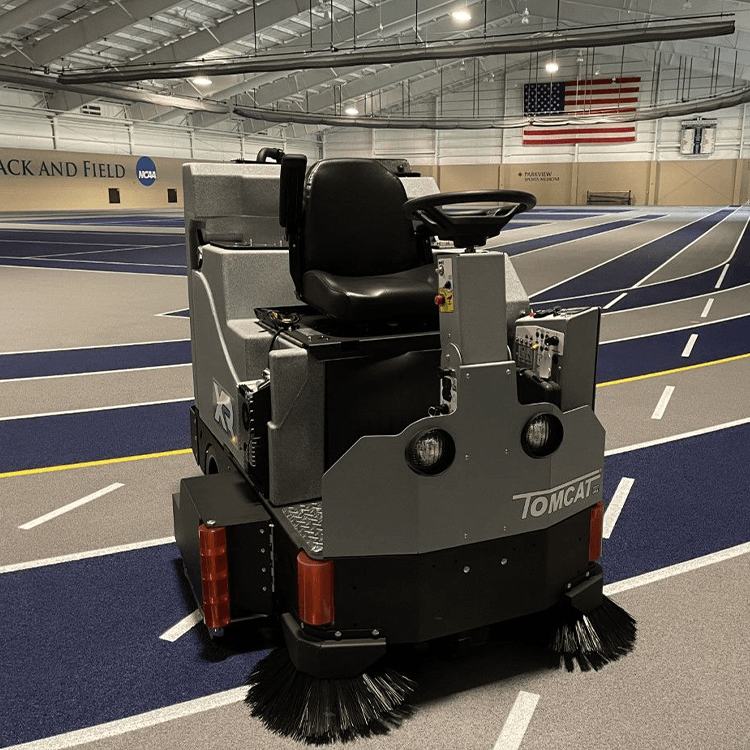

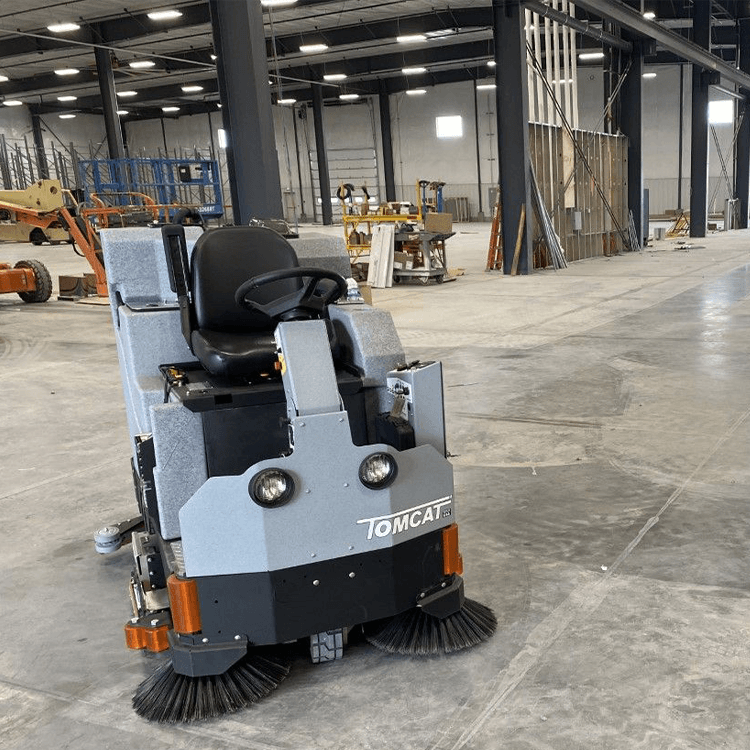

Dual Side Brooms and Guards
Extends the cleaning path up to walls and racking pallets. Moving small debris to center of path reduces squeegee streaking and hose clogs

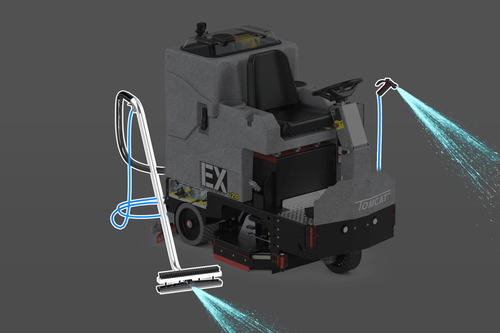

Scrub and Vac Wand / Spray Jet
Equipped on the brush side for floor scrubbing and squeegee side for water pickup. Easily clean under tables and in restrooms. Capable of pre-soaking the floor before scrubbing and the ability to easily rinse out the recovery tank

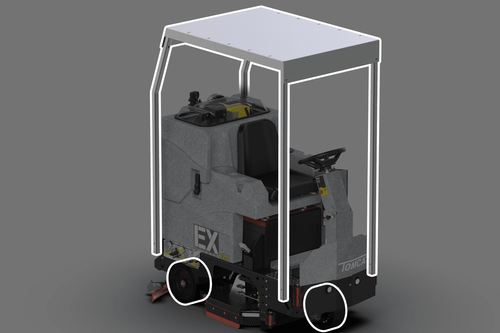

Overhead Guard / Black Tires
The overhead guard option will protect the operator from falling objects. The black tires are ideal in situations where the ground may be harsher than in normal situations. The overhead guard provides the safety required when working in warehouses or distribution centers.
Heavy Duty Side Doors
Thick Steel with leading rollers offers protection of critical scrub deck, reducing equipment damage and down time for repairs
Lights
The traditional white floodlights enhance visibility for the operator and oncoming hazards, while a blue spotlight alerts pedestrians and oncoming vehicles in crowded and noisy environments. The lighting option includes a flashing yellow beacon, improving machine visibility from multiple angles and boosting overall safety for both the machine and its surroundings.
Controller Options
LEGACY
The advanced touch screen scrub controller showcases cutting-edge 2010 technology, providing a sleek interface for effortless scrubbing operations. Its intuitive touch screen and customizable presets make it ideal for industrial and commercial cleaning tasks.
MILITARY GRADE
The controller incorporates a durable metal casing, ensuring its resilience against impacts, and other environmental factors. Large, tactile buttons and robust switches allow for easy and precise user interaction, even while wearing gloves or in low-light conditions.
TOUCH SCREEN
The advanced touch screen scrub controller incorporates familiar modern day technology, providing a sleek interface for effortless scrubbing operations. Its intuitive touch screen and customizable presets make it ideal for industrial and commercial cleaning tasks lending control familiarity and ease of use to staff.
You Be The Judge
Steel Frame
The steel frame offers a through-bolt assembly with stainless fasteners for easier service and longevity. All assemblies mount directly to 7-ga (3/16” thick) steel frame.
Accidental damage to bumpers, decks, wheels, or over tensioning the frame during transport will not damage our tanks since we don’t bolt collision points to the poly tank.
Stainless Squeegee
The exposed portions to recovery water is stainless. Featuring locking locking latches for the front and rear areas. Available with a range of blades for various floors and applications.
The stainless squeegee does great on both smooth and rough floors
Baffle System
The dirty water passes into our drain saver basket, and then fills up the rear side of the baffle such that the foam doesn’t migrate to the front where the stainless screen and float ball operates
The stainless screen and white vacuum filter offer protection and ensure good airflow (squeegee performance)
Patented Vac Box System
This invention earned a US Patent. The Yellow Vac Box is vacuumized and safely stores up to 1-gallon of foam or dirty water away from the vac motor’s intake
Dirty water drains out of the Yellow Vac Box via Unloader Valve as soon as vacuum is turned OFF.
The Blue Muffler Box reduces the noise and directs moisture out to the bowls, alerting the operator of a problem.
Patented Service Cabinet
The patented service cabinet comes equipped with a solution filter, unloader valve, vac blow-by, suds valve, zero3, and a battery box valve. Each component assists in properly draining excess electrolyte safely while also collecting vac moisture to alert the operator and more.
Applications
Education
Schools frequently value the maneuverability of our designs for those congested areas and small elevators. Both K though 12 and universities utilize the superior productivity from our large tank capacities and run time. Onboard ozone (ZerO3) and our EDGE Orbital technology greatly reduce the use of chemicals and afford meaningful cost savings.
Healthcare
Low noise and optimized water control are key features our healthcare customers require. Our patented vacuum protection and muffler system allow for high performance motors to operate at unmatched levels. These scrubbers combine heavy duty cleaning and drying with noise levels suitable for facilities that operate around the clock.
Gymnasium
Our products are used extensively on wood, vct, rubber running tracks, concrete, artificial turf and other surfaces that are unique to athletics departments. The wide range of scrub head types and sizes, combined with the assortment of brushes and pads allow for the greatest flexibility.
Retail - Grocery
Many in this category are moving away from the cheap imported products to our American made equipment that affords them better cleaning performance and less downtime for repairs. Shopping malls, large retail box stores and grocery stores have high daily traffic and often need to clean up product spills promptly in the presence of customers. A quiet and quality cleaning machine sends a good message to the clients that the organization values sanitation.

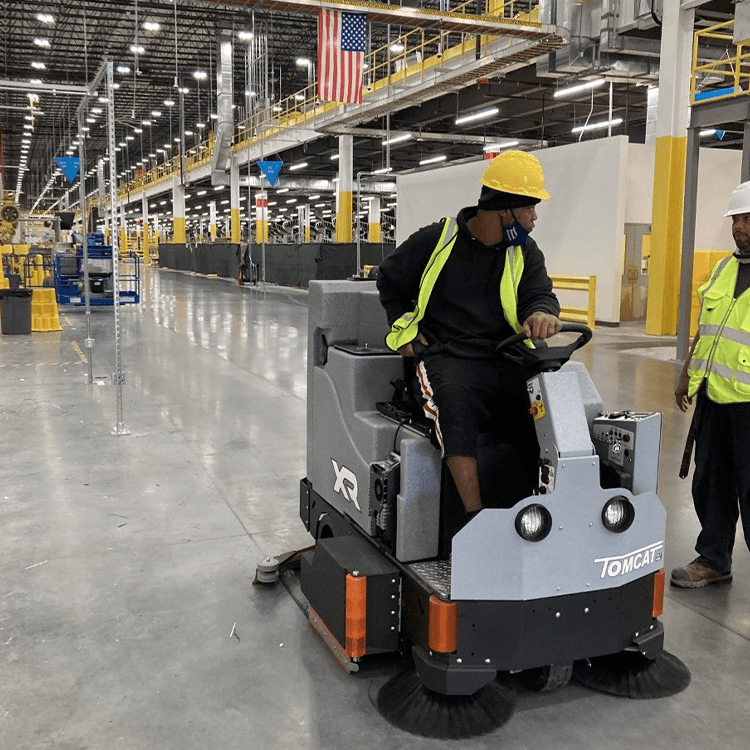

Distribution - Warehouse
Our company “industrial equipment” origins result in the most durable equipment offered to the “commercial” sector. Warehouse and distribution centers utilize powerful material handling equipment and steel racking. The cleaning equipment needs to be built to pick up heavy soil, broken pallets, nails and also survive the inevitable collisions with fork trucks and racking.
