CARBON v2 Series

Request a Demo
Run TimeUp to 3.5 Hours
Tank CapacitySol: 21 gal | Rec: 23 gal
Cleaning Path24" - 29"
Operator Manual
Parts Manual
Tech Specs

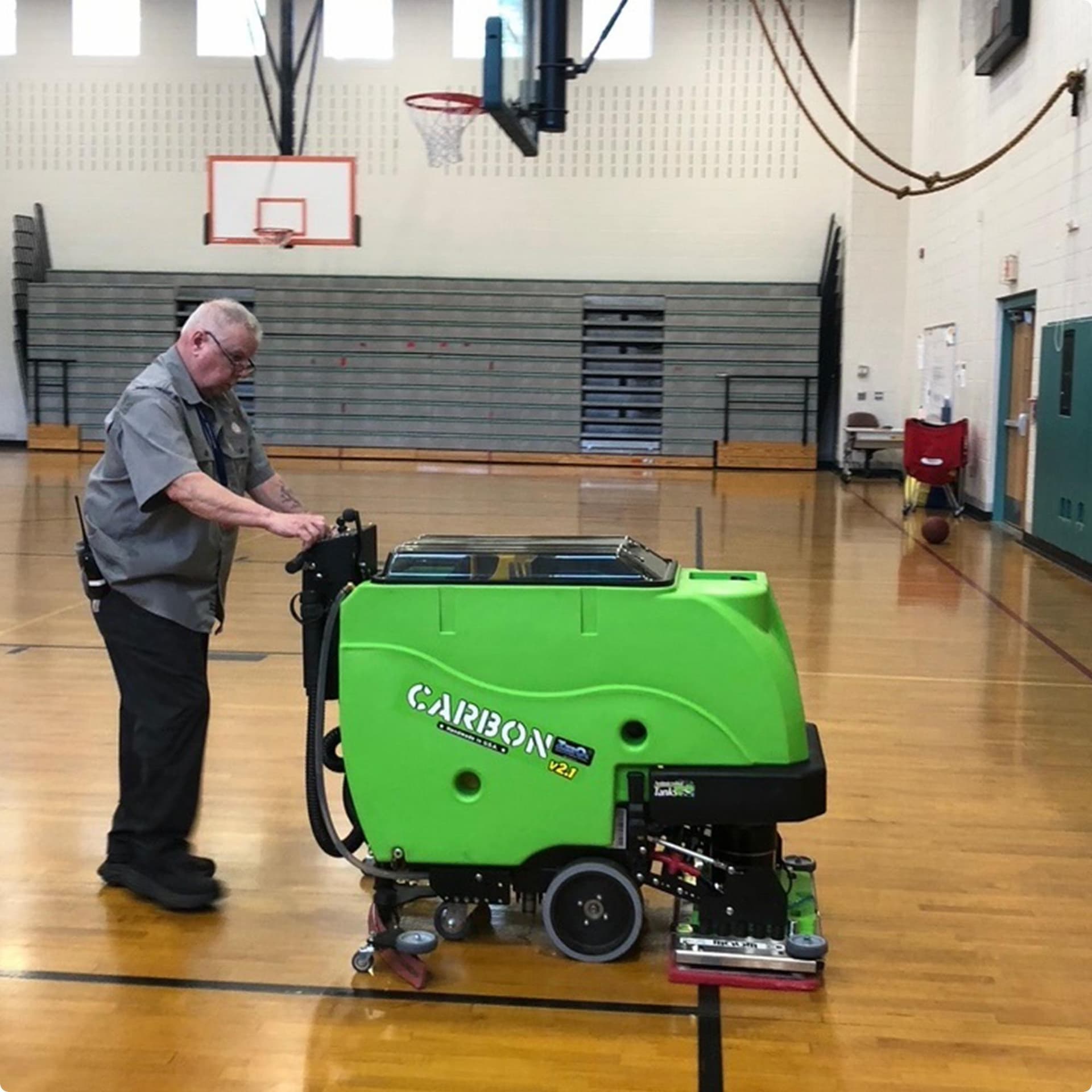

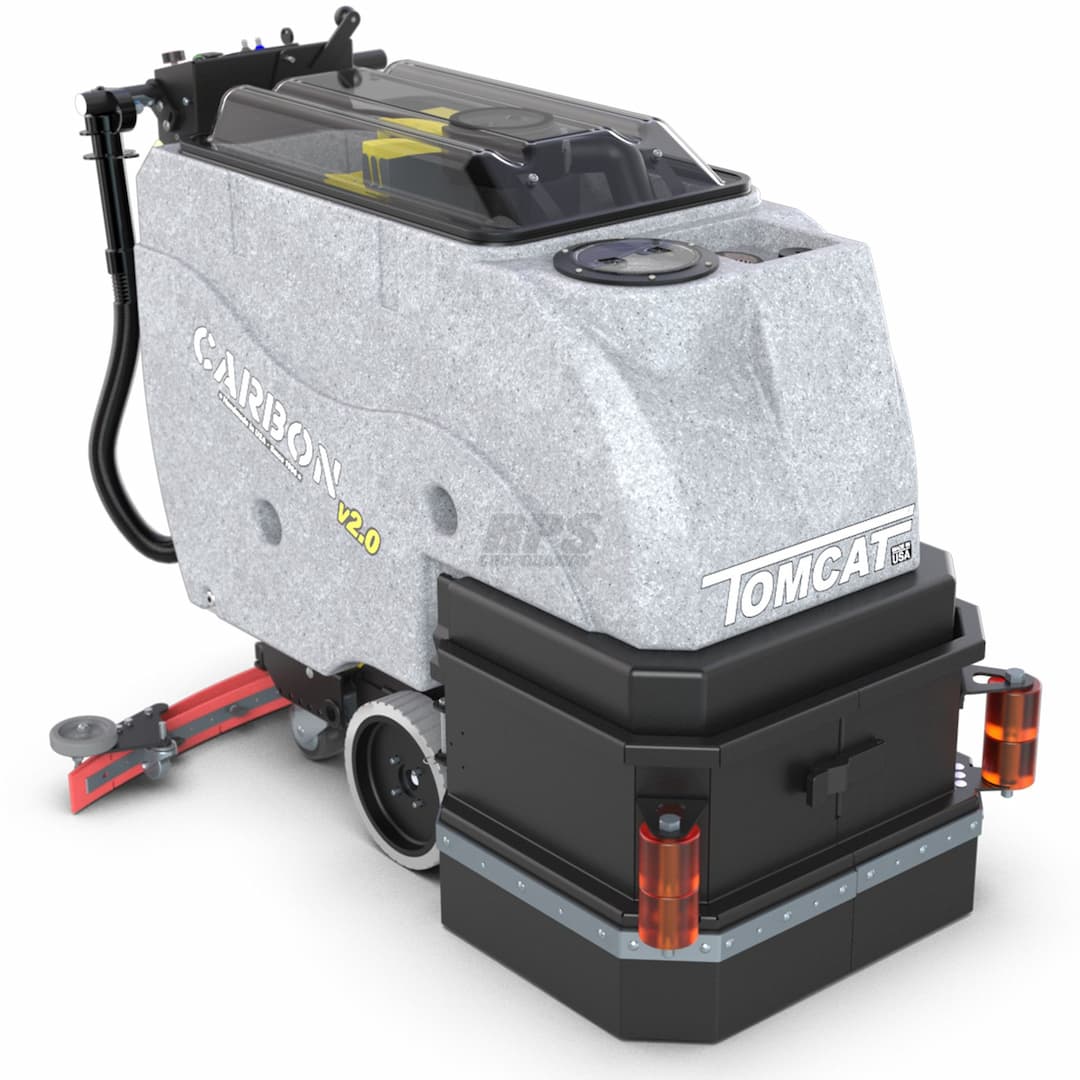

The Carbon platform offers more runtime and tank capacities than its smaller brother the Sport. We offer the Carbon walk behind scrubber with 3 different styles of scrub decks and each in 2 different sizes. The new 1-piece stainless steel squeegee and scrub deck designs ensure the investment in quality will afford customers a lower cost of ownership.

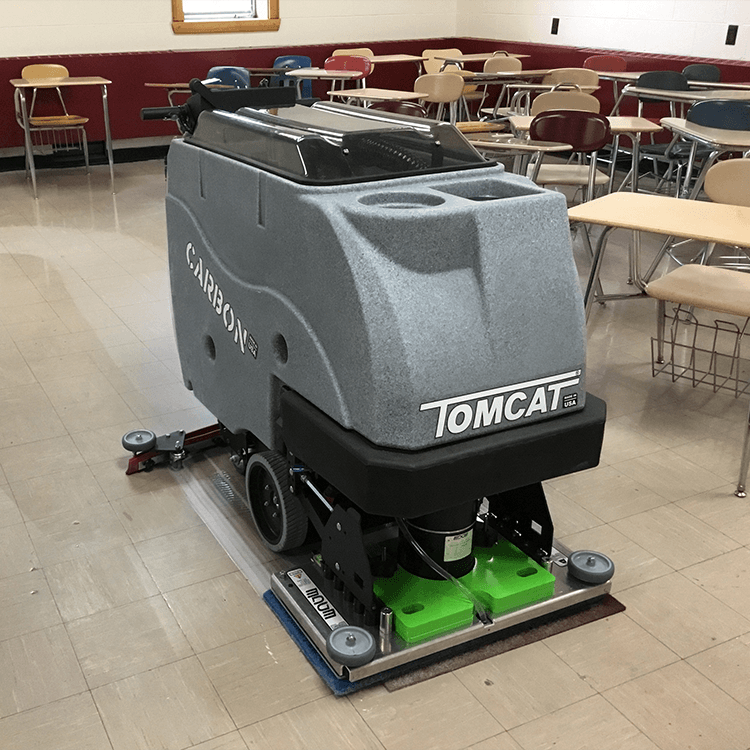

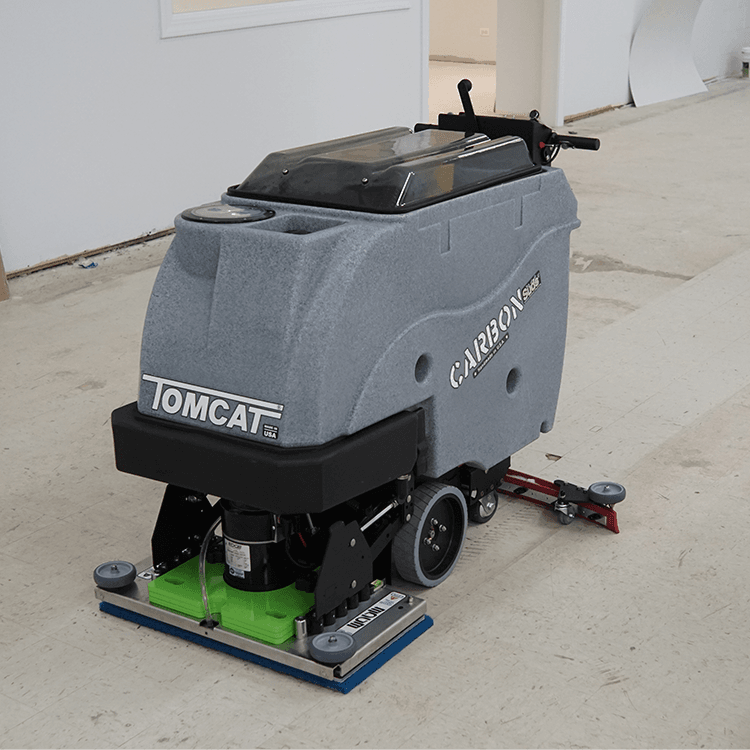

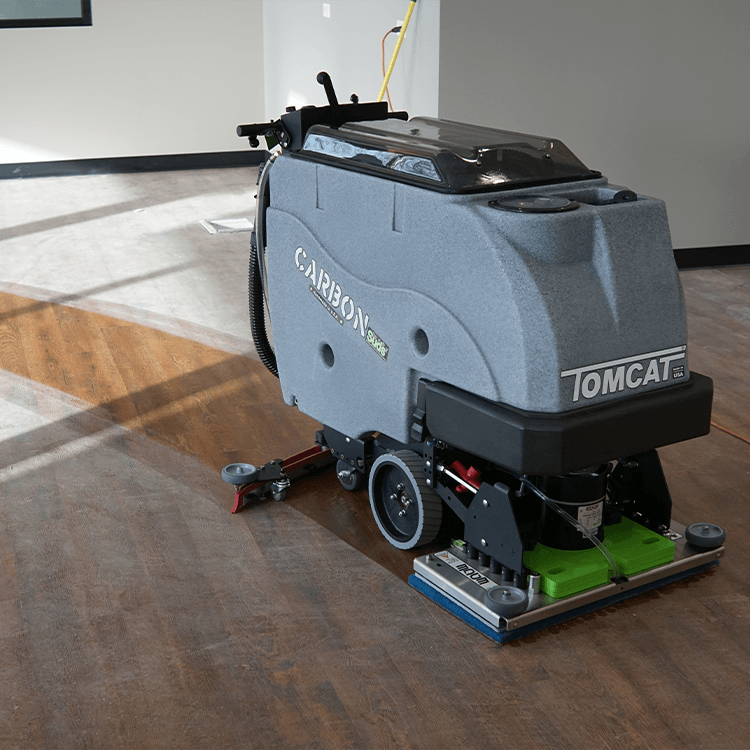

The traditional disk scrub deck offers the widest selection of brushes or pads and can even be equipped with diamond polishing tools. The cylindrical deck brings superior cleaning to grout lines in ceramic floors. Our innovative Edge scrub decks are a favorite with schools, hospitals and grocery stores which utilize VCT tiles and floor finish wax for premium floor shine.

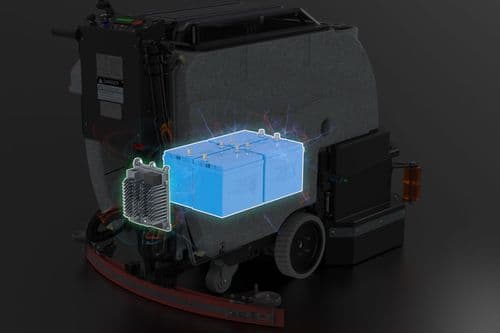

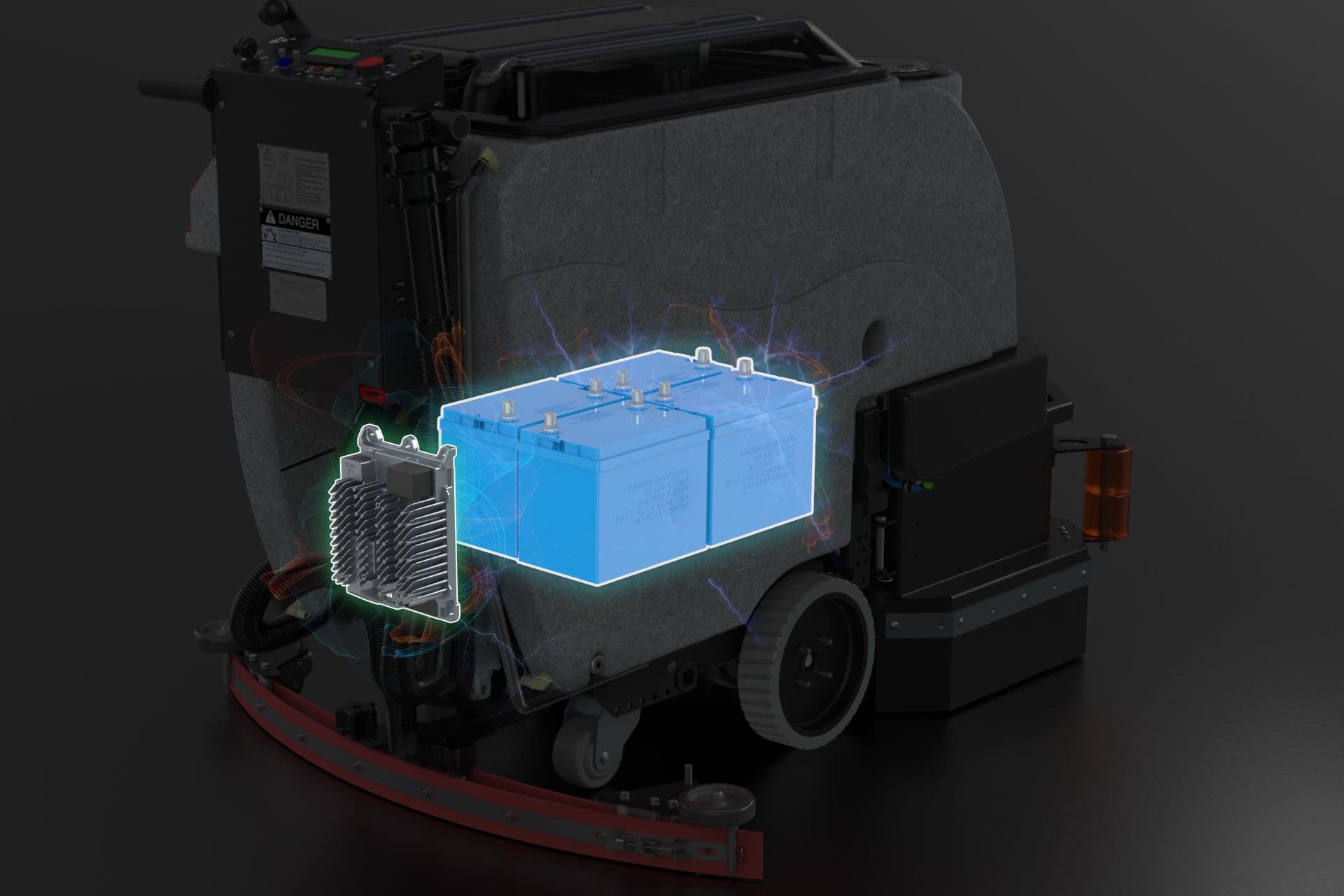

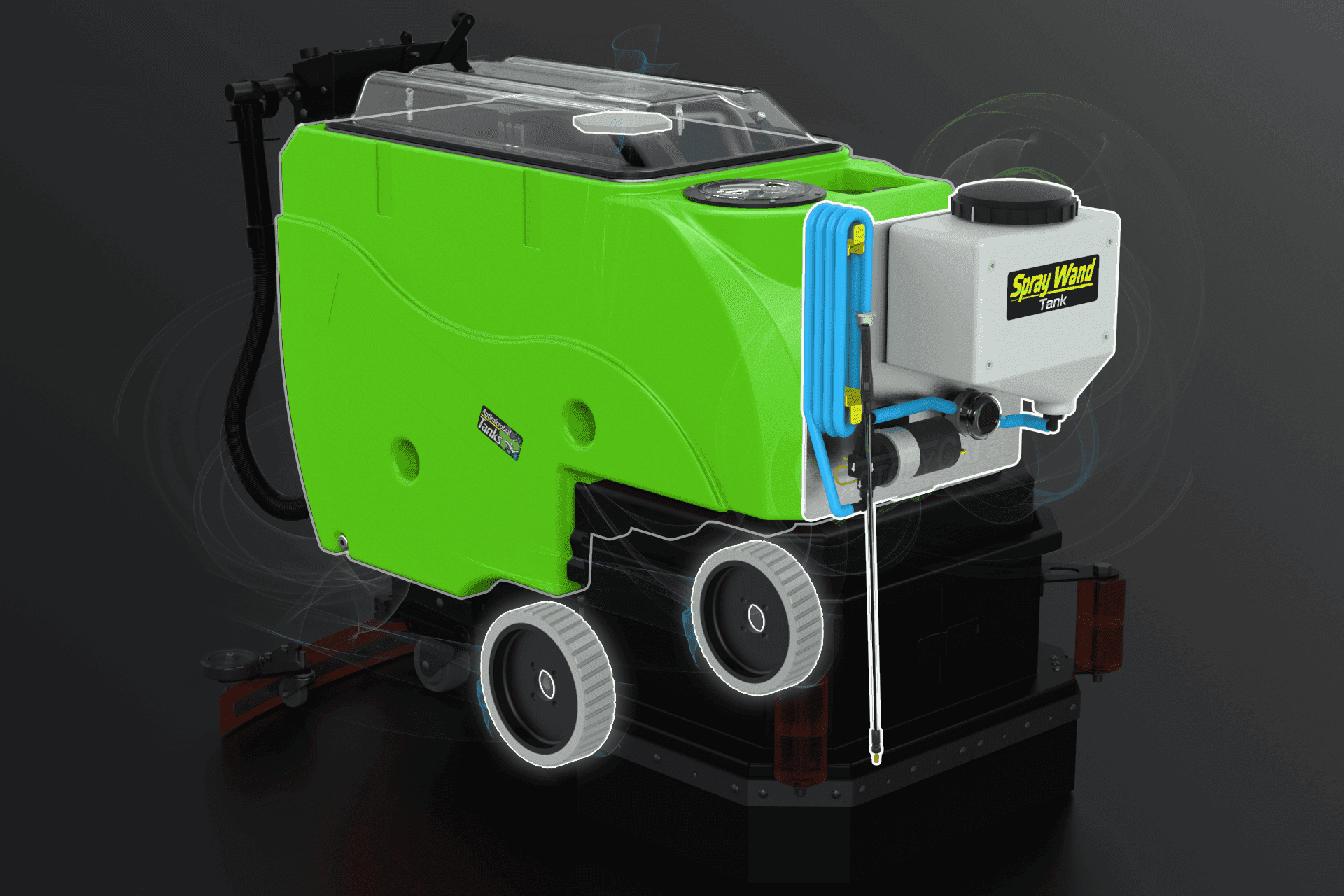

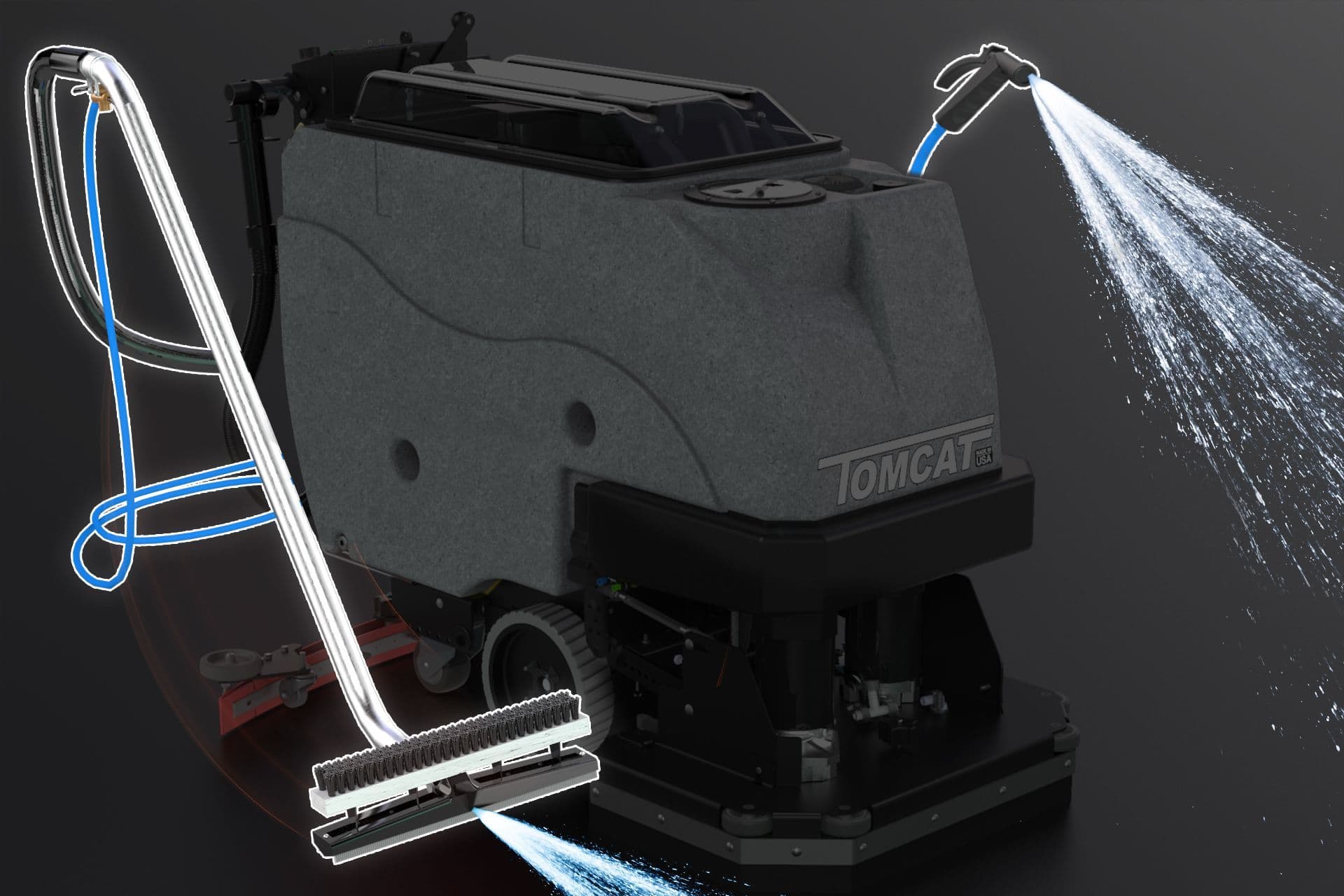

The Carbon can be purchased with a range of options like antimicrobial tanks, AGM batteries, onboard chargers, or even remote cleaning tools like our Sanitation kit for applying disinfectants. For customers who prefer a smaller footprint we offer a small tank for better visibility, while retaining the runtime and scrub deck choices of the standard Carbon scrubber.

Choose your scrub deck:

Choose your size:

Tomcat Disk

A disk scrub deck is the most versatile for your floor scrubber. With a gimbaled mount that allows a scrub brush to conform to uneven floors, it offers exceptional performance. For flat, smooth, finished floors, a pad holder and disposable floor scrubber pads can be used. For textured and uneven floors, you can choose from a wide variety of scrub brush fibers and grits, tailored to your surface and soil combination.

You be the Judge

Judge for yourself, see the Tomcat difference


Tomcat serves a wide variety of industries

walk behind sweepers


Tomcat floor scrubbers in action

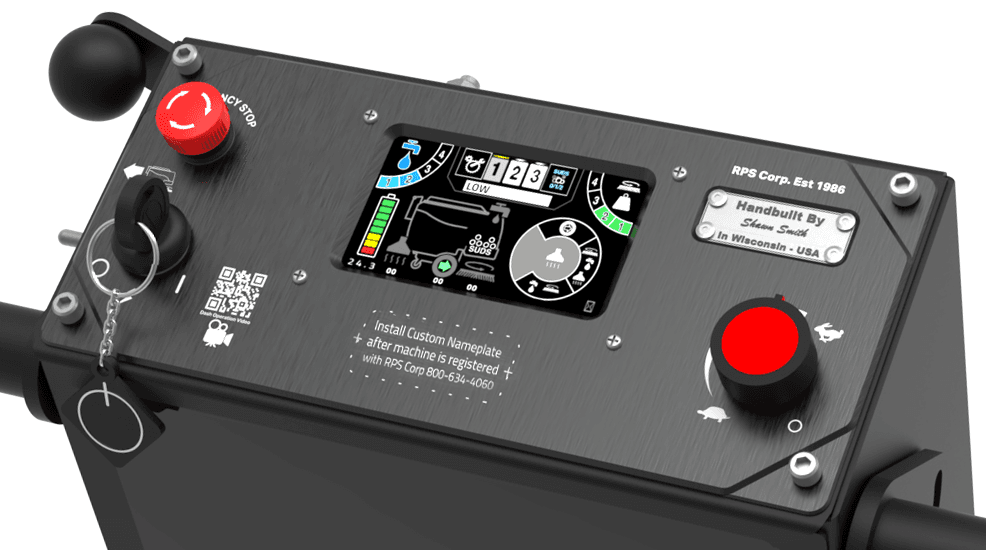

Controller Options

Touch Screen

The advanced touch screen scrub controller incorporates familiar modern day technology, providing a sleek interface for effortless scrubbing operations. Its intuitive touch screen and customizable presets make it ideal for industrial and commercial cleaning tasks lending control familiarity and ease of use to staff.

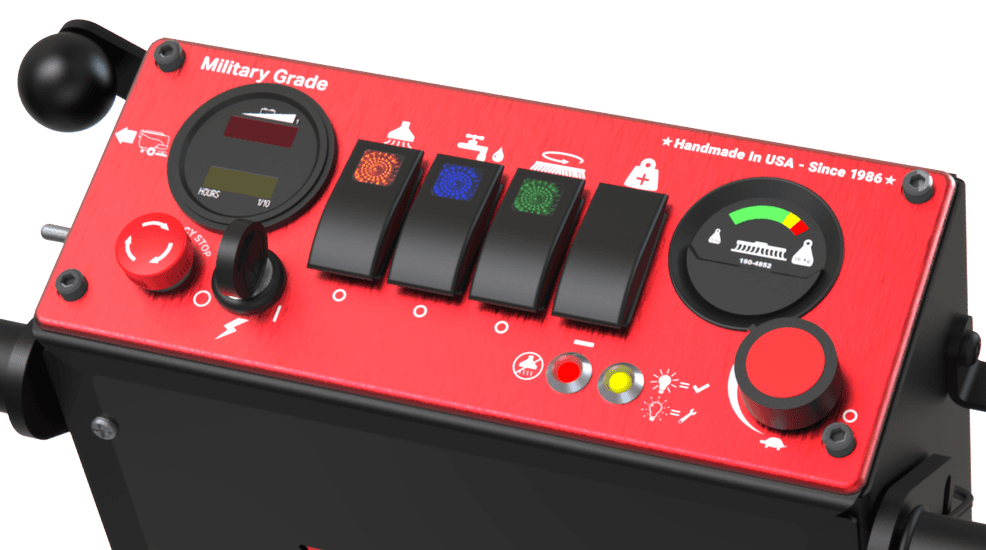

Military Grade

This control system incorporates a durable and weather-resistant metal casing, ensuring its resilience against impacts, harsh applications and other environmental factors. Large, tactile buttons and robust switches allow for easy and precise user interaction, even while wearing gloves or in low-light conditions. This system offers exceptional serviceability in areas with limited support and accessibility.

You Be The Judge

Tomcat Equip You Be the Judge

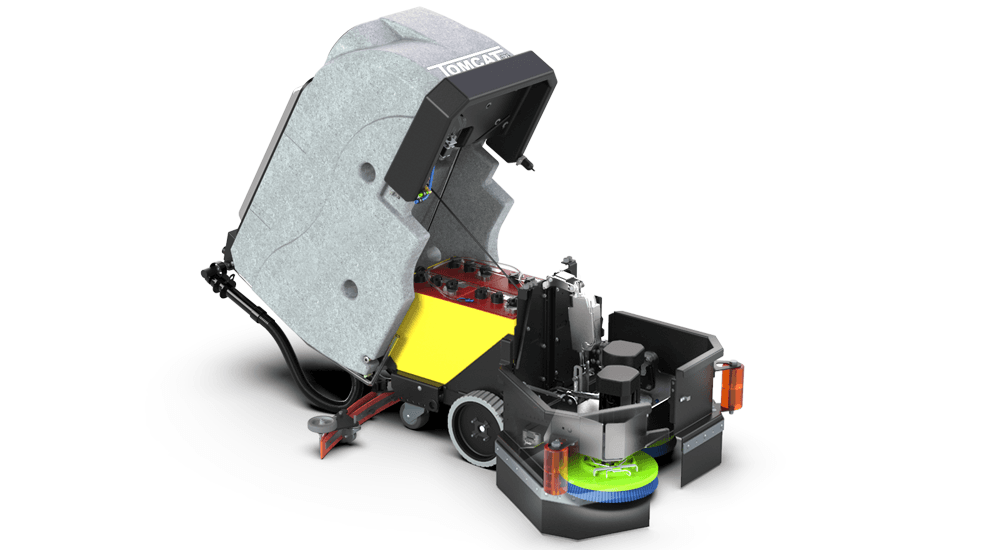

Tip Back Tank walkie

Our designers and engineers have 25+ years of experience and recognize cleaning equipment will eventually require service. The tank tips back without the need for any tools. Providing you with access to the all the important serviceable items.

The ease of access allows for technicians to easily troubleshoot problems with less disassembling to get to a single part.

Tomcat Equip You Be the Judge

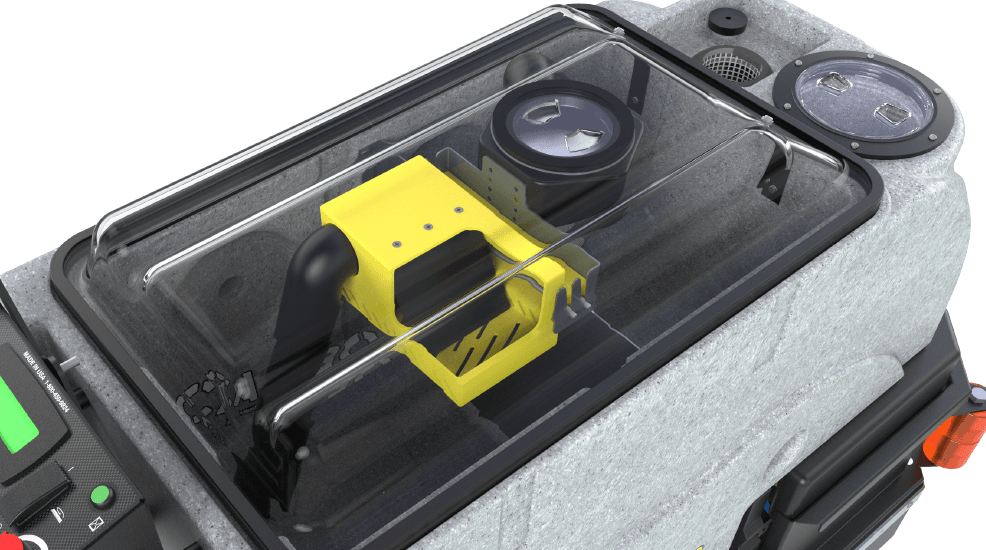

Large Clear Lid walkie

For customers experienced with our cleaning equipment, having a continuous view of the dirty water recovery tank is convenient. This feature offers real-time visibility of the water level, foam, debris tray, vacuum's white vac filter, and more.

The fully accessible recovery tank stands out as a key cost-saving feature, as the lid can be opened to clean out the recovery tank, removing odors and potential airborne contaminants but also minimizes the risk of inhalation by employees.

Tomcat Equip You Be the Judge

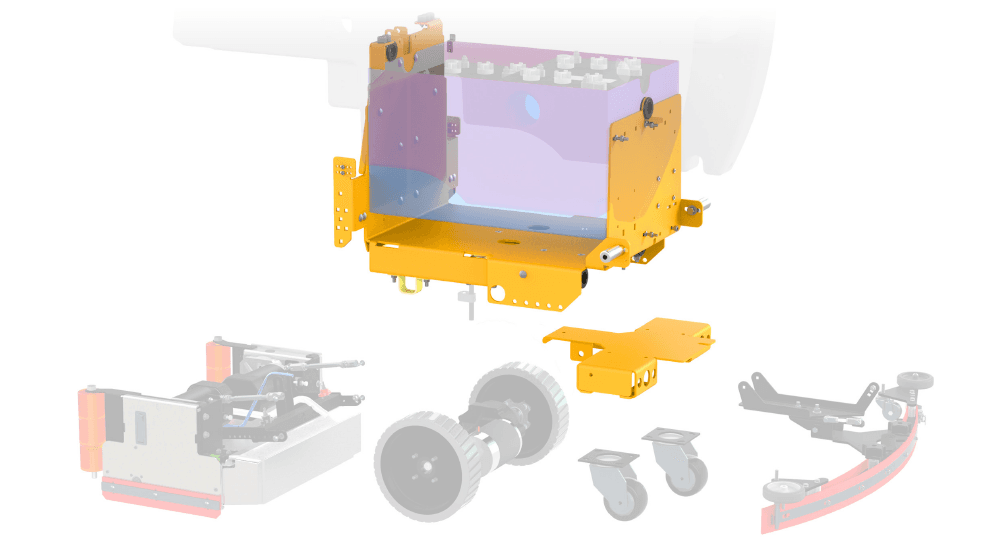

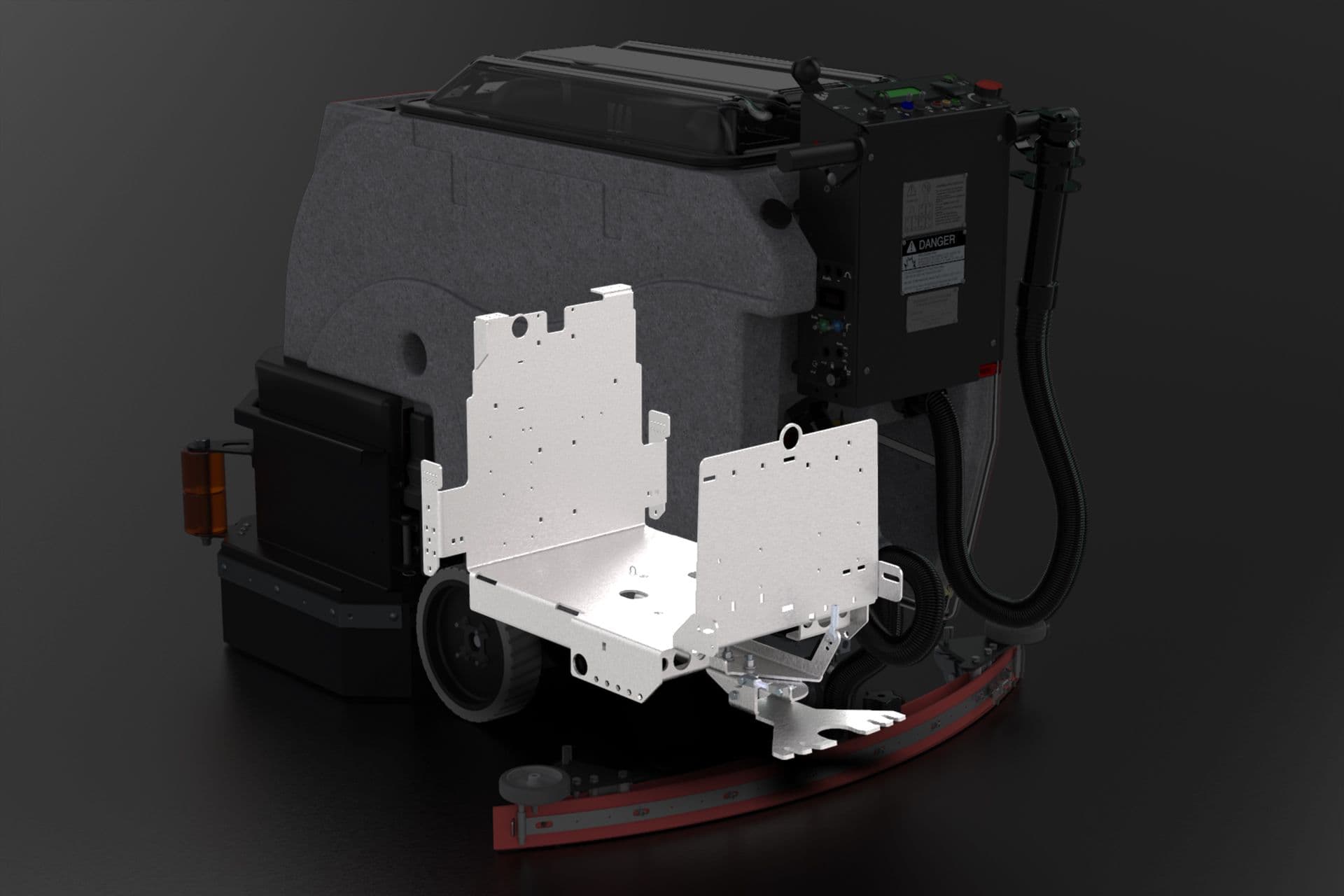

Steel Frame walkie

The steel frame offers a through-bolt assembly with stainless fasteners for easier service and longevity. All assemblies mount directly to 7-ga (3/16” thick) steel frame.

Accidental damage to bumpers, decks, wheels, or over tensioning the frame during transport will not damage our tanks since we don’t bolt collision points to the poly tank

Tomcat Equip You Be the Judge

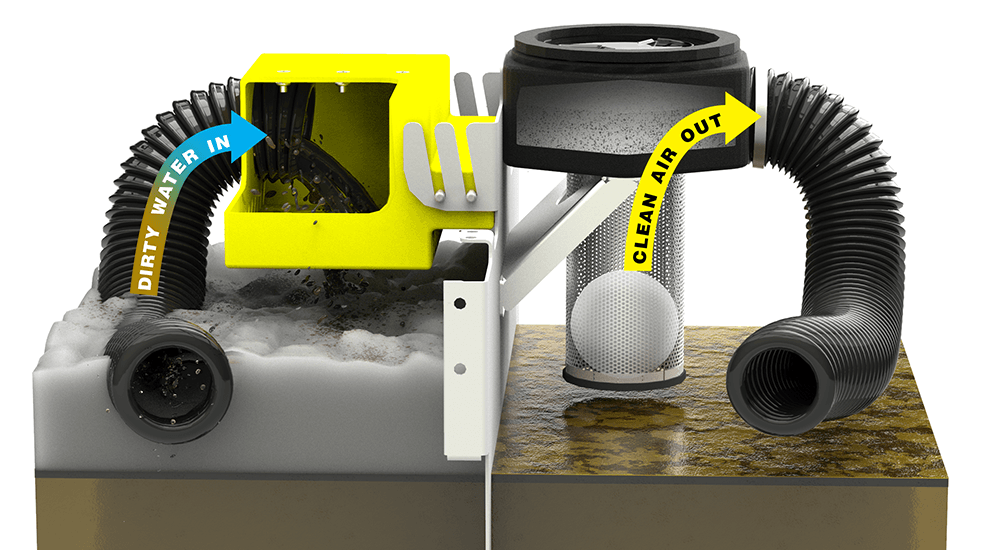

Baffle System

The dirty water passes into our drain saver basket, and then fills up the rear side of the baffle such that the foam doesn’t migrate to the front where the stainless screen and float ball operates

The stainless screen and white vacuum filter offer protection and ensure good airflow (squeegee performance)

Tomcat Equip You Be the Judge

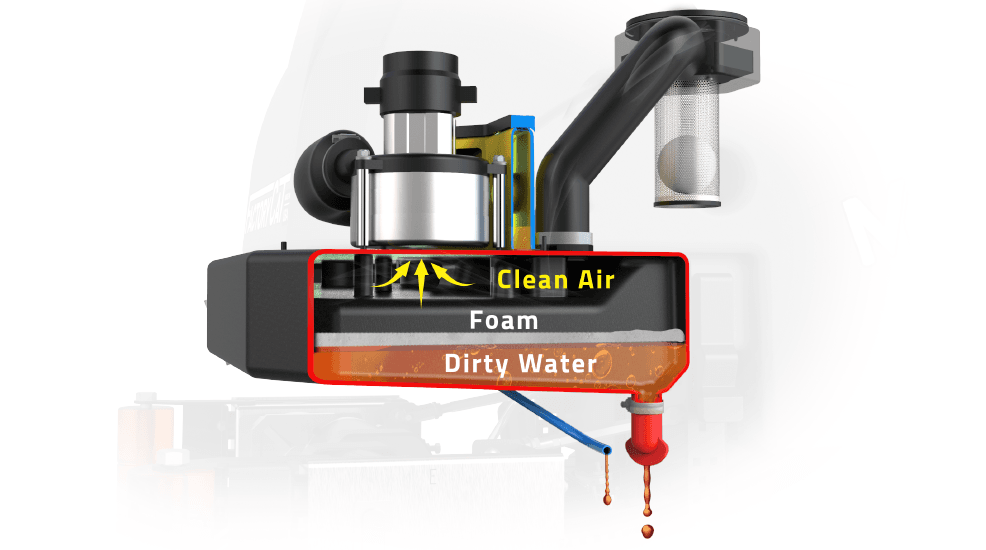

Patented Bandeau System walkie

Earning a US Patent, the black bandeau is vacuumized and holds 1-gallon of foam or dirty water away from the vac motor, backing up the primary filters and balls screens.

The “unloader” valve automatically drains off any residual water when vac is OFF and the yellow muffler box reduces noise and directs any digested water out of tube, alerting the operator to potential problem.

Tomcat Equip You Be the Judge

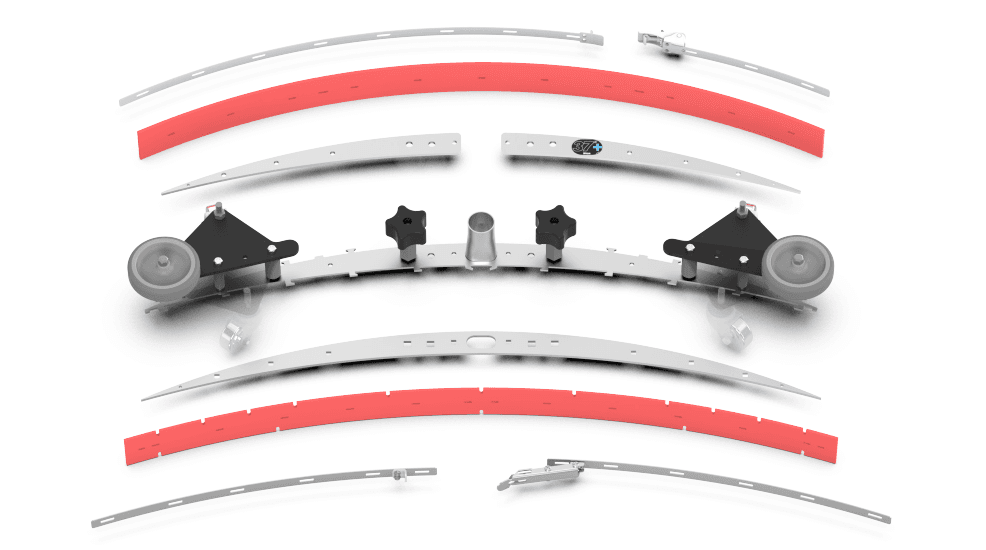

Stainless Squeegee walkie

The exposed portions to recovery water is stainless. Featuring locking locking latches for the front and rear areas. Available with a range of blades for various floors and applications.

The stainless squeegee does great on both smooth and rough floors



Tomcat Equip

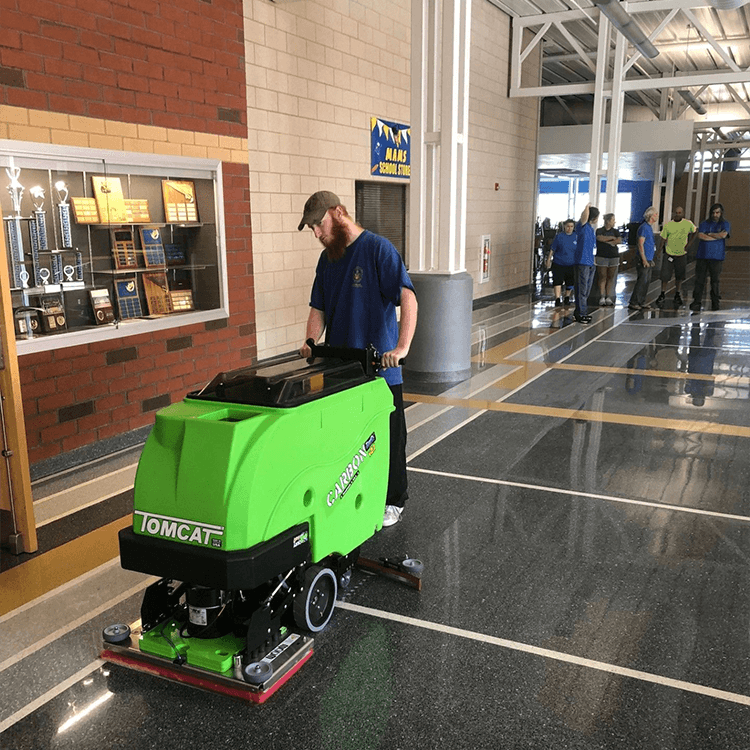

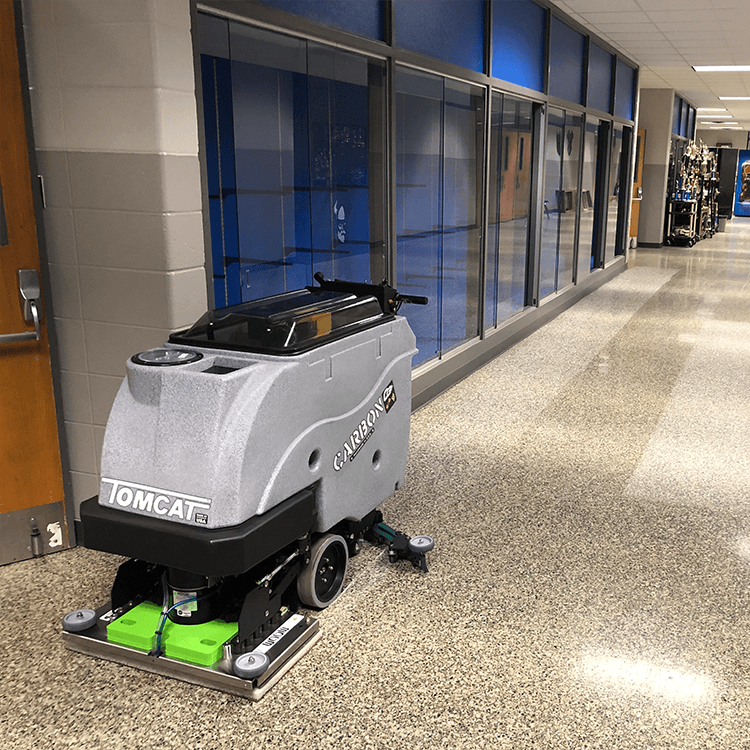

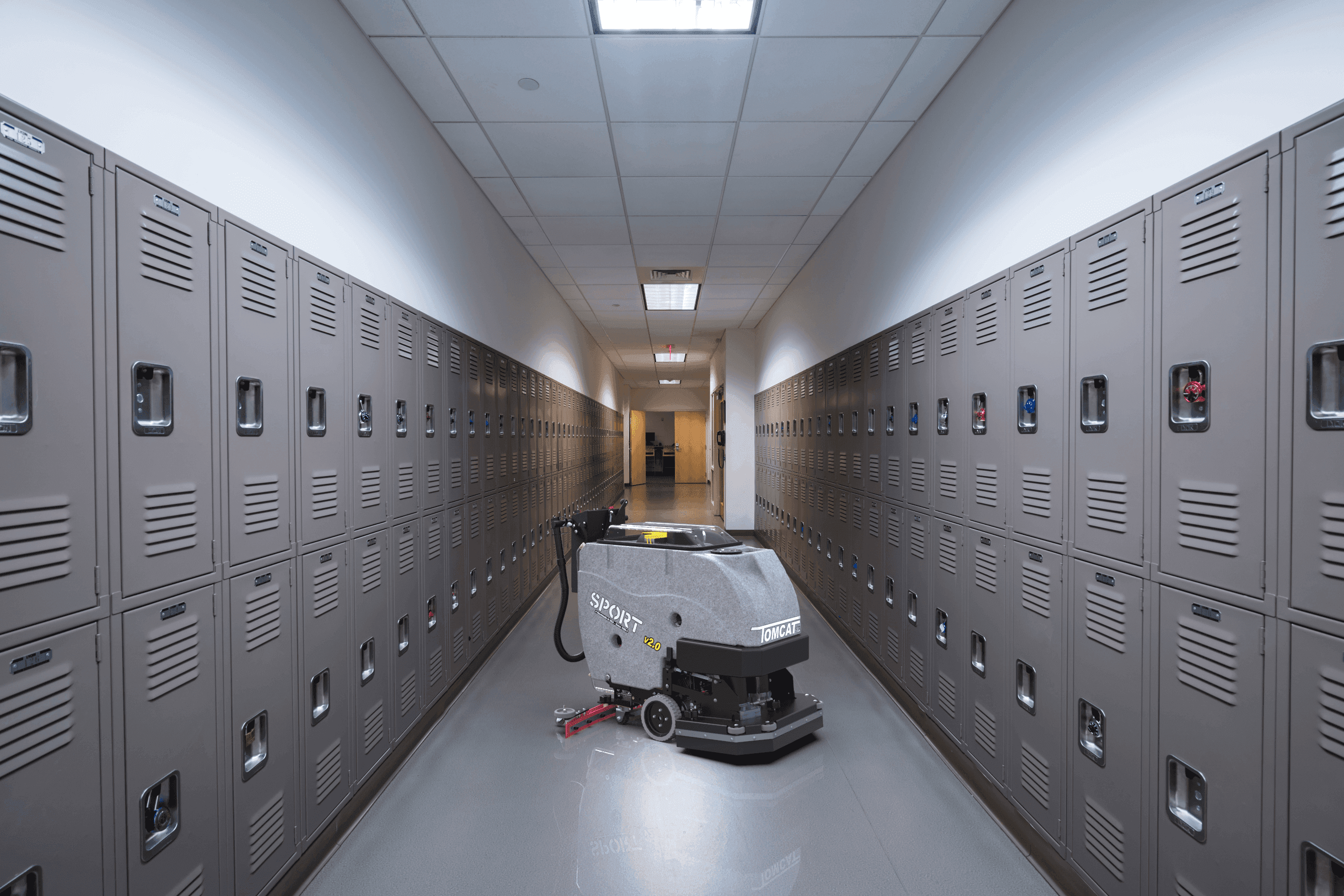

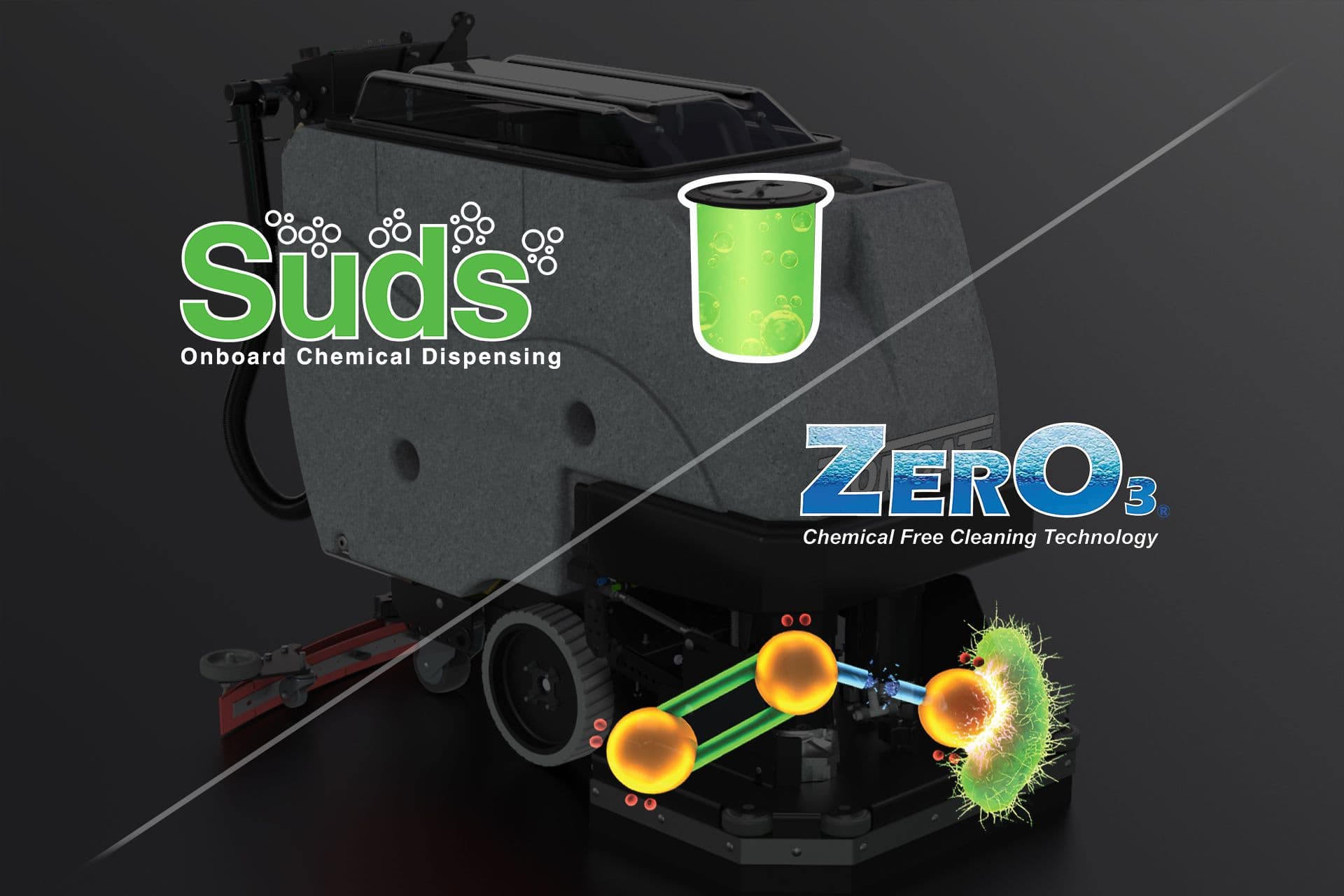

Schools frequently value the maneuverability of our designs for those congested areas and small elevators. Both K though12 and universities utilize superior productivity from our large tank capacities and run time. Onboard ozone (ZerO3) and our EDGE Orbital technology greatly reduce the use of chemicals and afford meaningful cost savings.

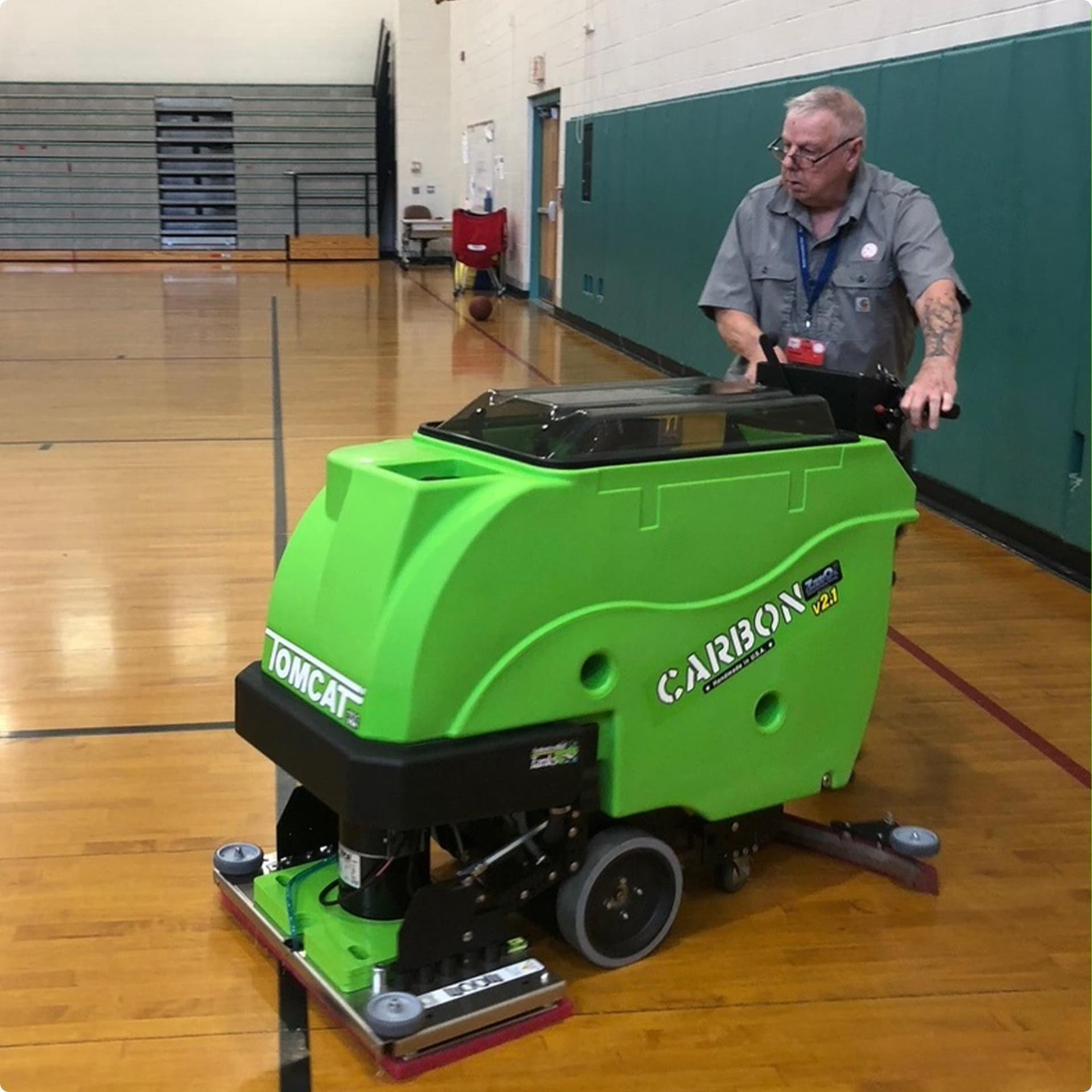

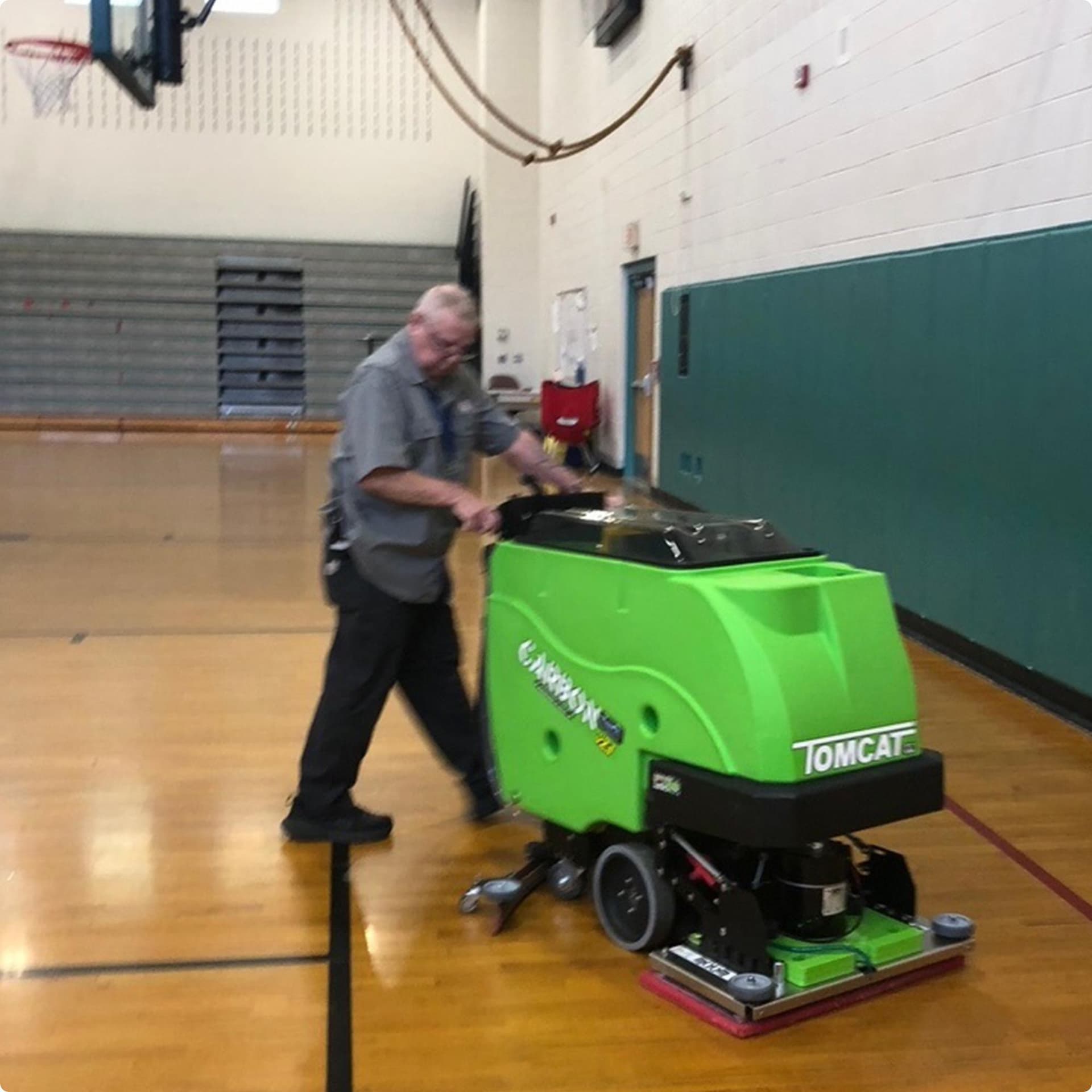

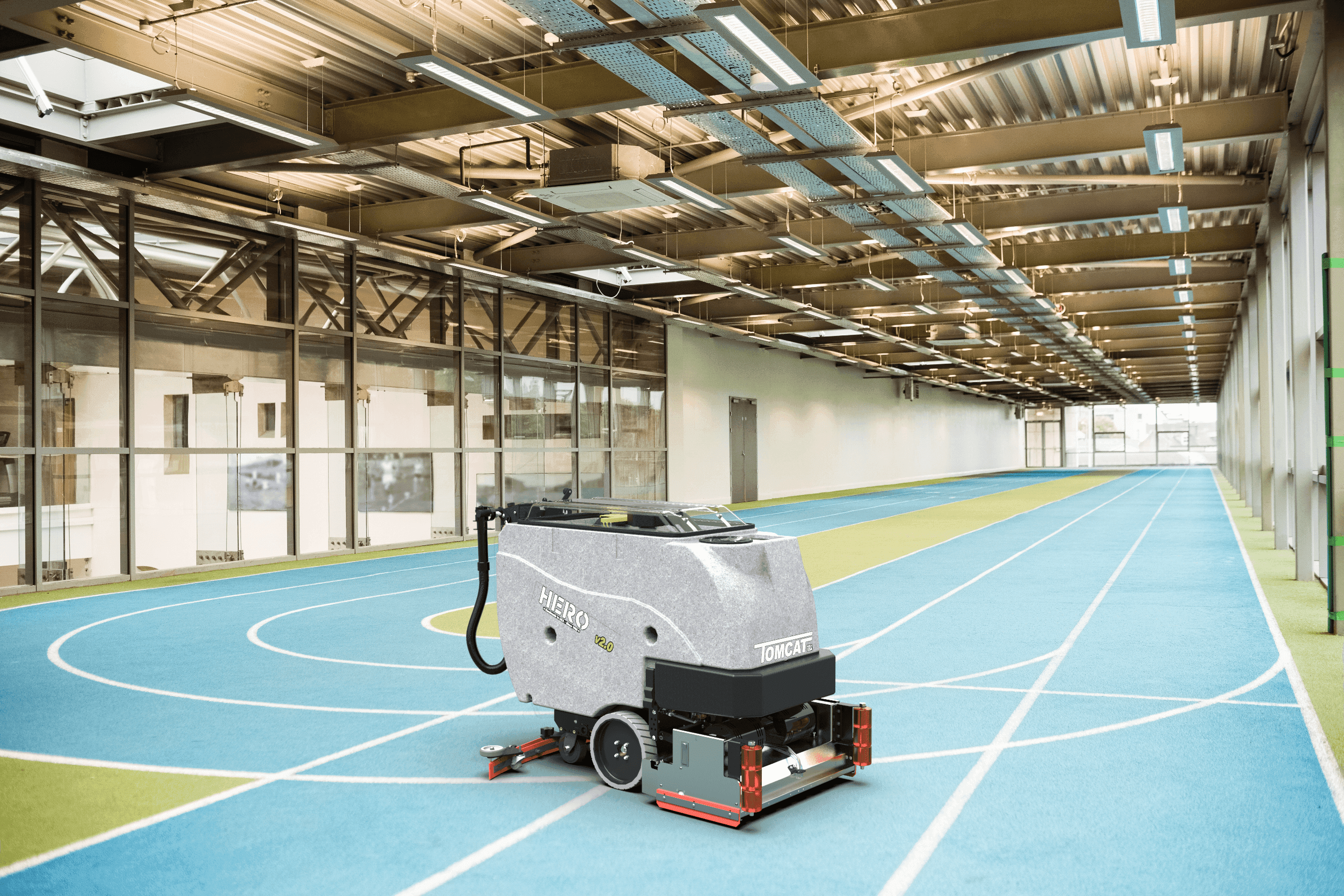

Sports Arena

Tomcat Equip

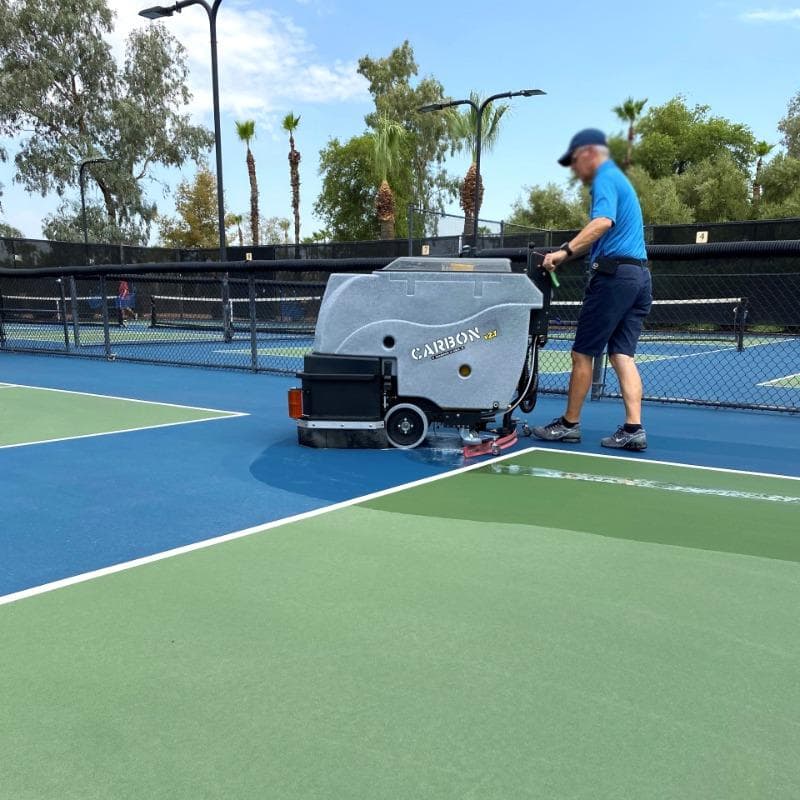

Our products are used extensively on wood, vct, rubber running tracks, concrete, artificial turf and other surfaces that are unique to athletics departments. The wide range of scrub head types and sizes, combined with the assortment of brushes and pads allow for the greatest flexibility.


Tomcat Equip

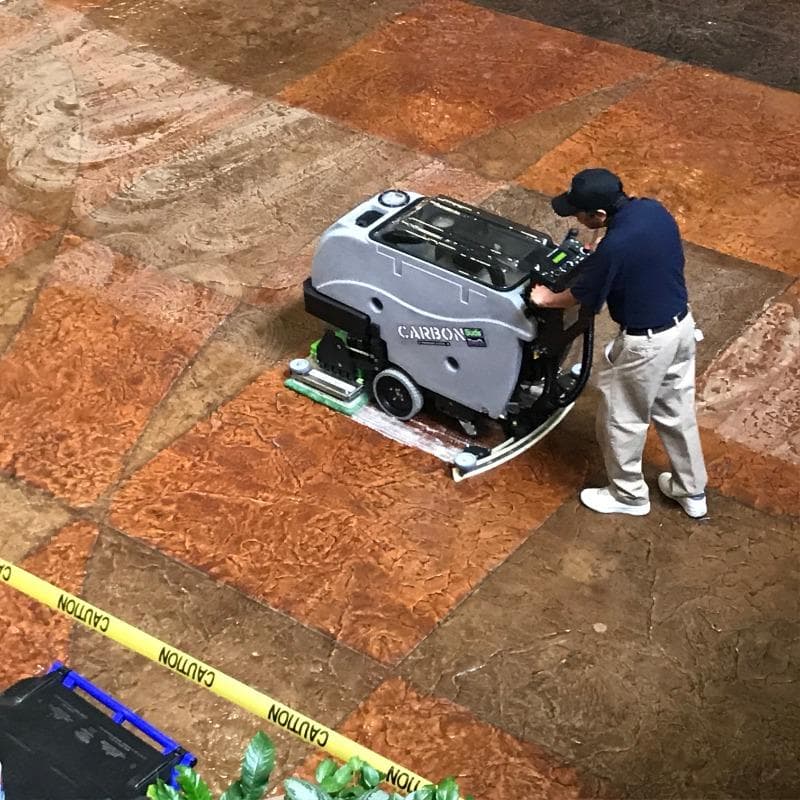

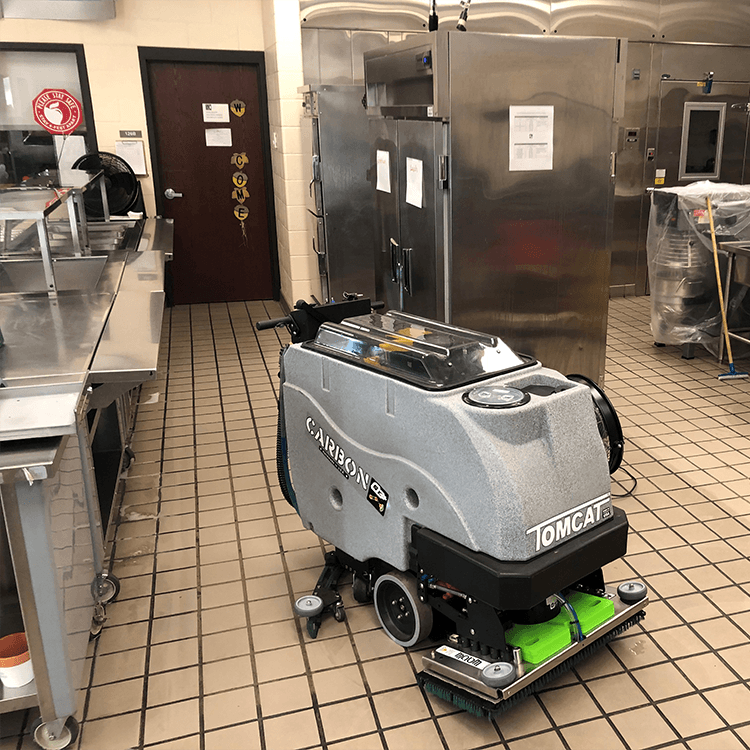

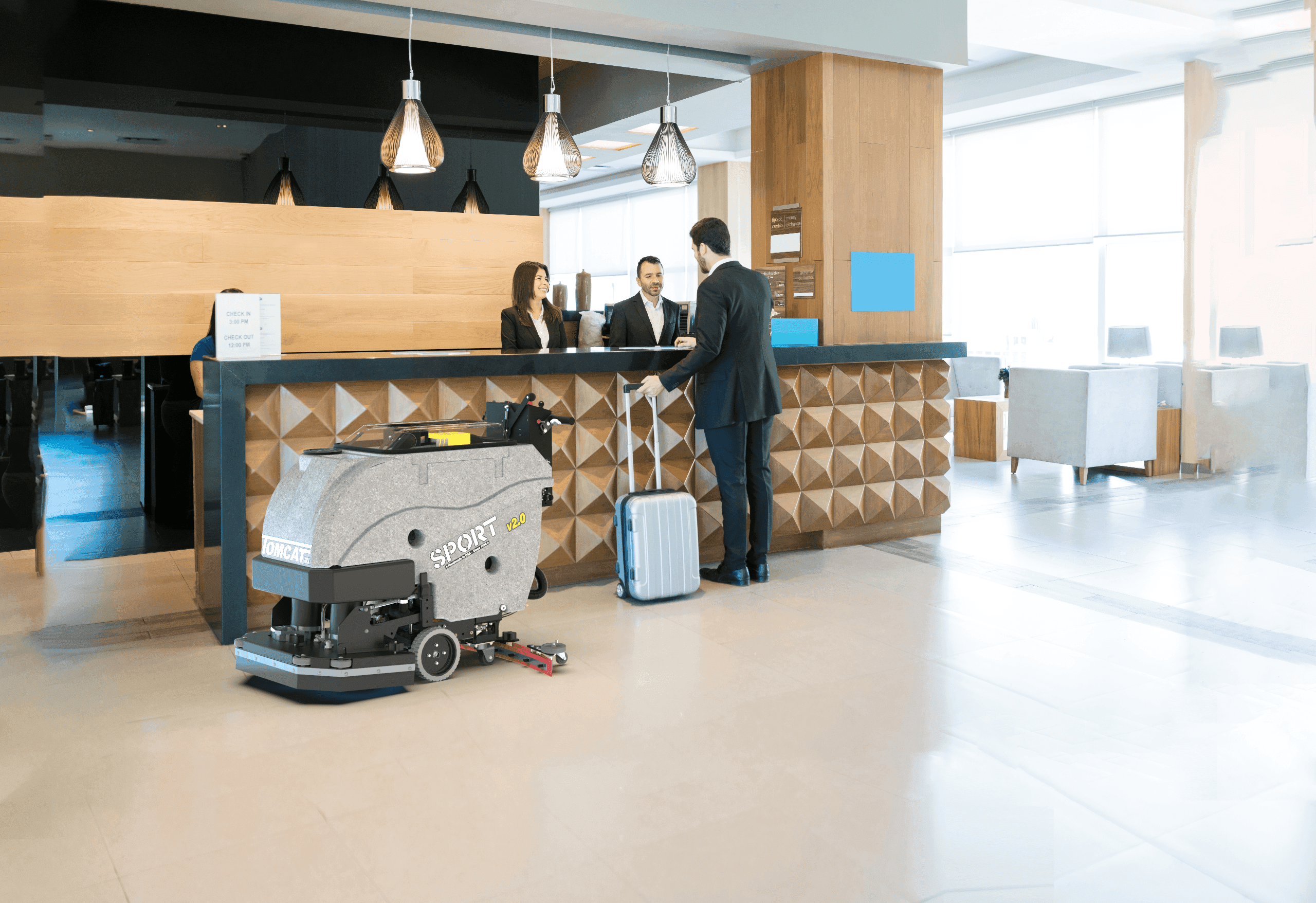

Food and guests’ services require a high level of cleaning and frequency. Equipment that can cut through heavy grease, navigate commercial kitchens and public lobbies alike. Hotel and resort casinos understand the cleaning equipment must be available to operate 24/7 and often perform housecleaning role near customers.


Tomcat Equip

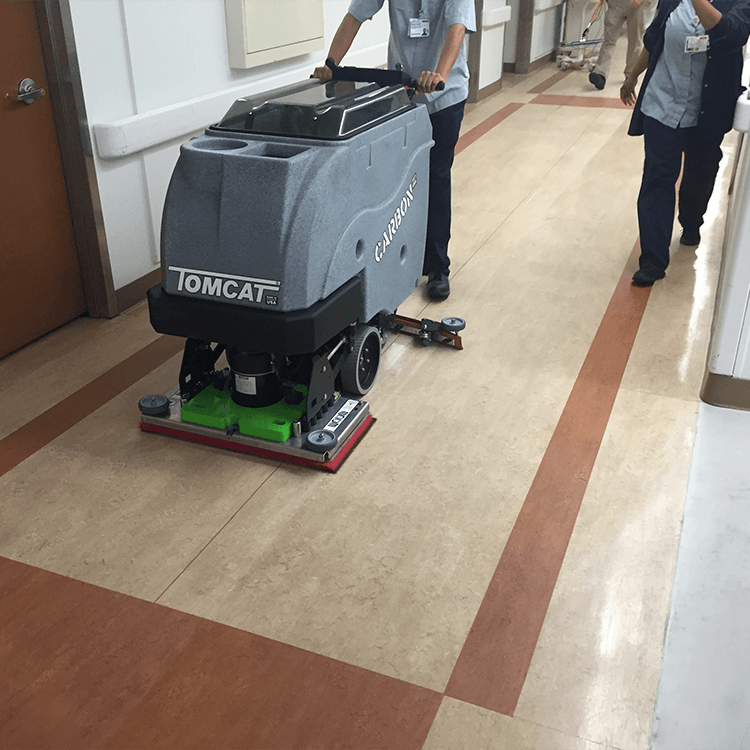

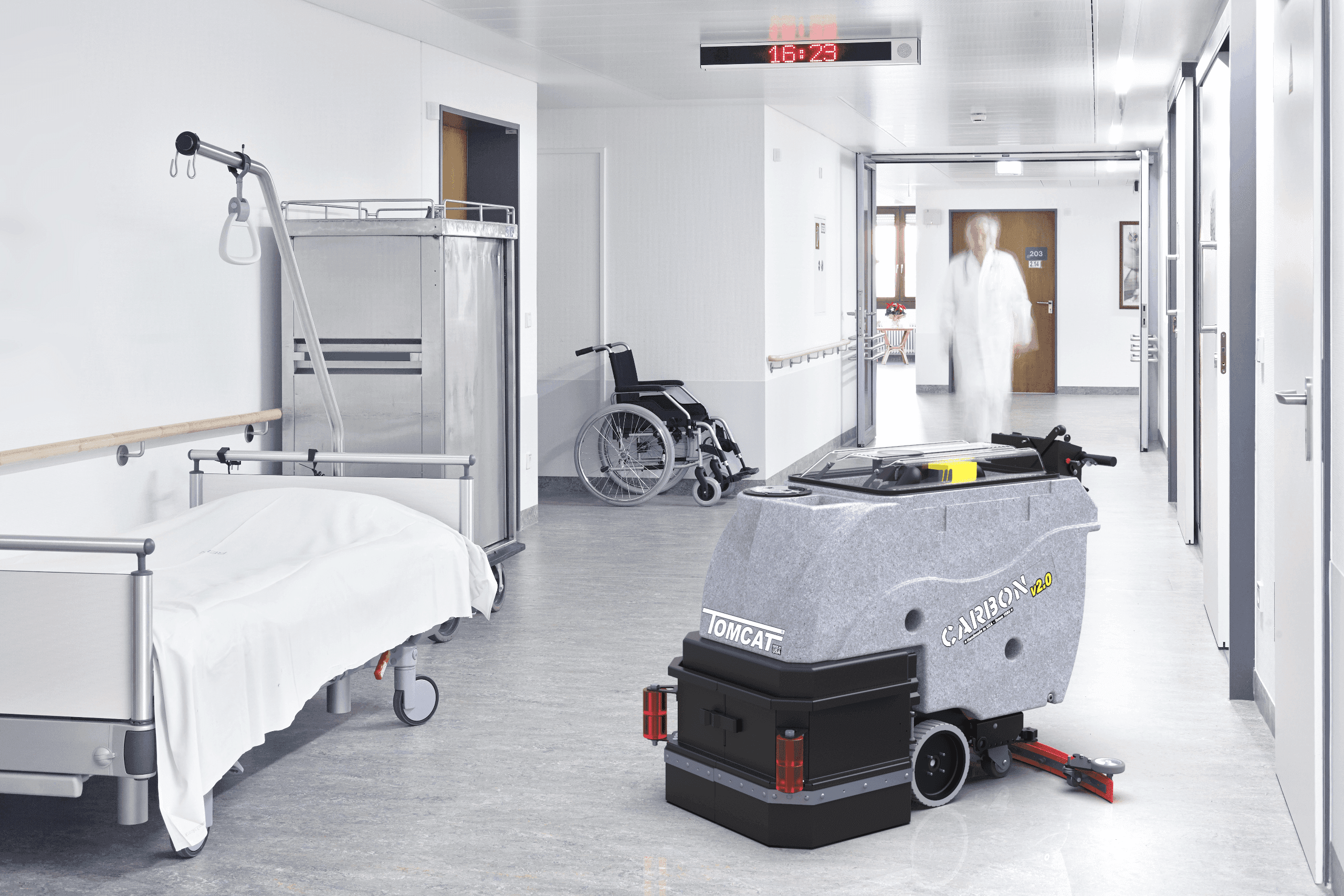

Low noise and optimized water control are key features our healthcare customers require. Our patented vacuum protection and muffler system allow for high performance motors to operate at unmatched levels. These scrubbers combine heavy duty cleaning and drying with noise levels suitable for facilities that operate around the clock

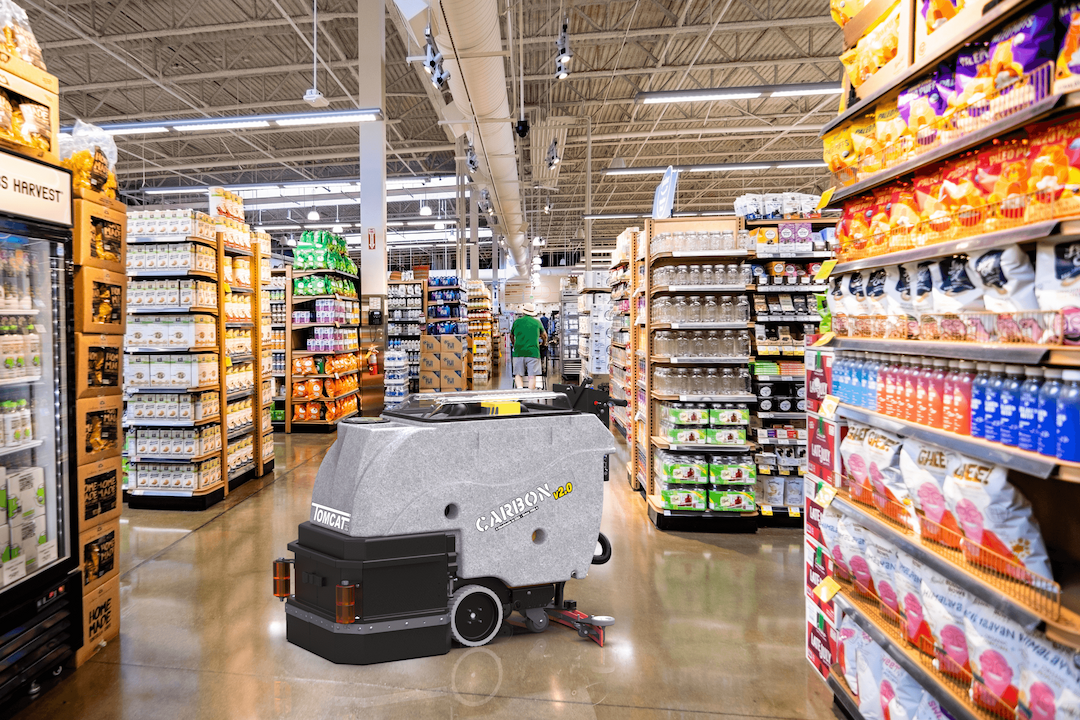

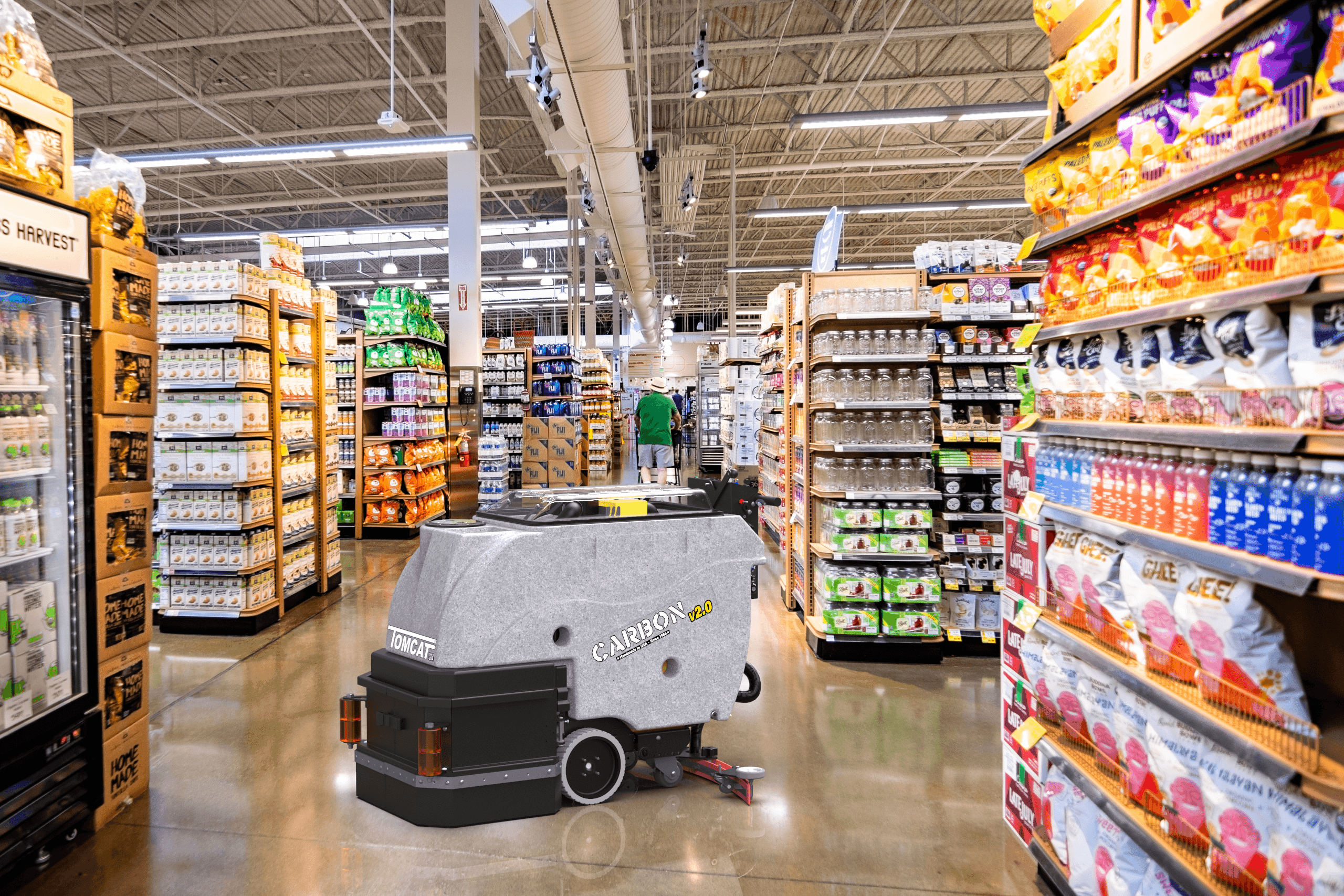

Retail - Grocery

Tomcat Equip

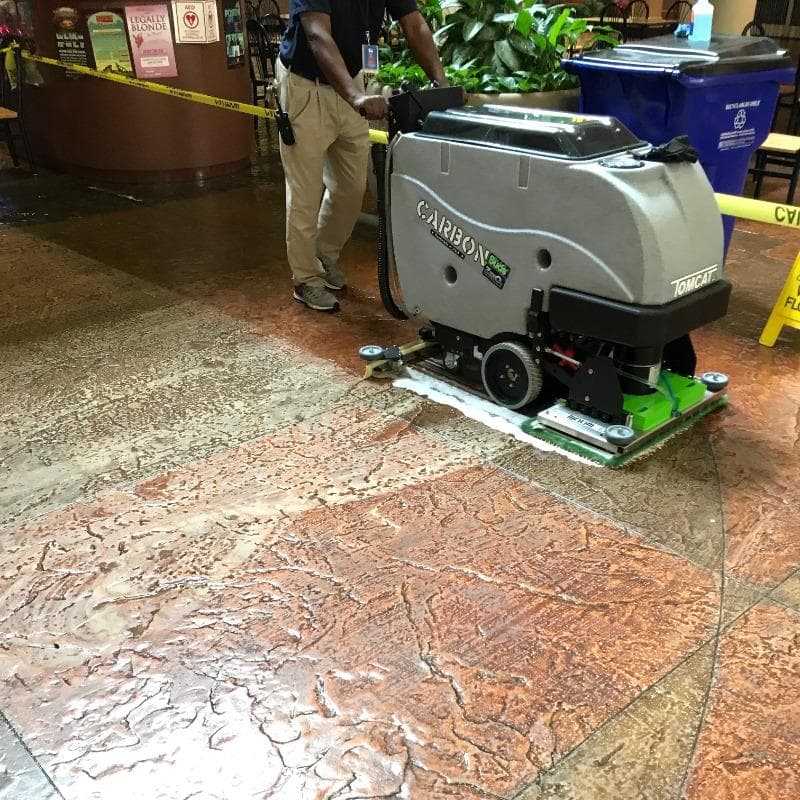

Many in this category are moving away from the cheap imported products to our American made equipment that affords them better cleaning performance and less downtime for repairs. Shopping malls, large retail box stores and grocery stores have high daily traffic and often need to clean up product spills promptly in the presence of customers. A quiet and quality cleaning machine sends a good message to the clients that the organization values sanitation.

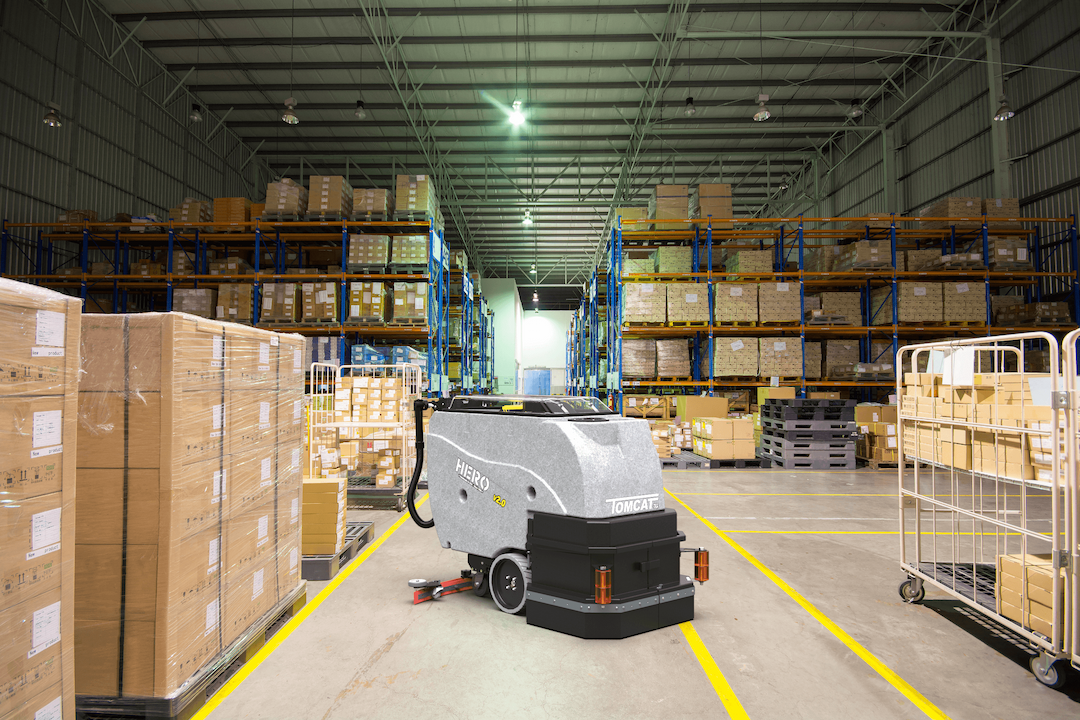

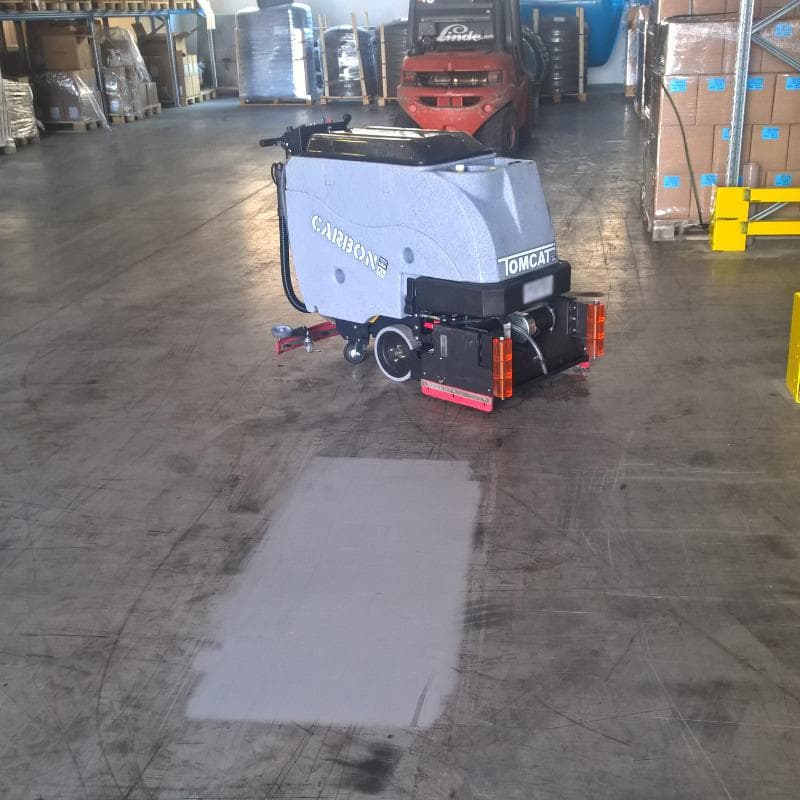

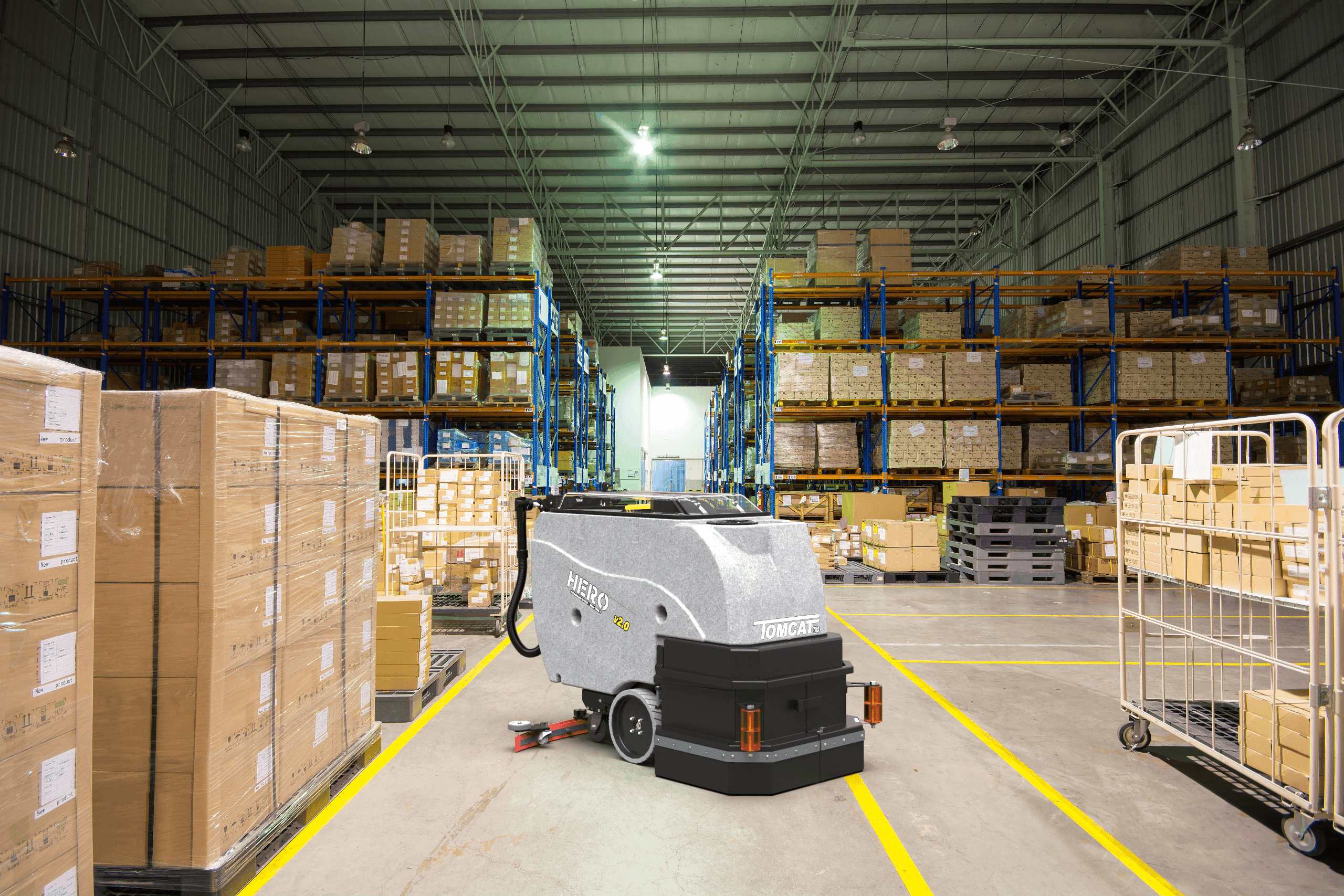

Distribution - Warehouse

Tomcat Equip

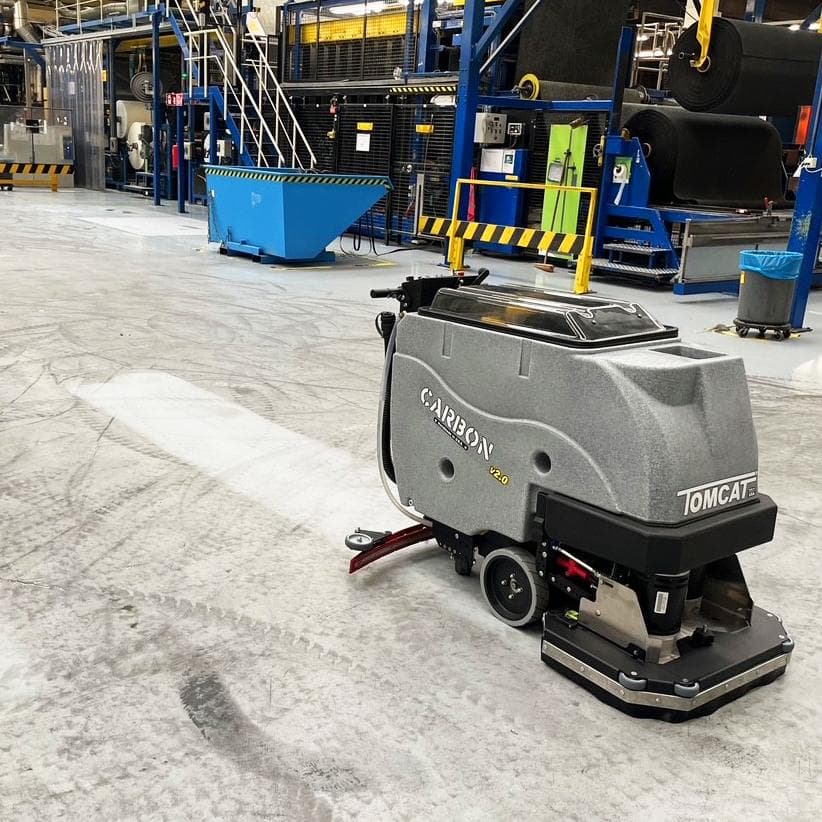

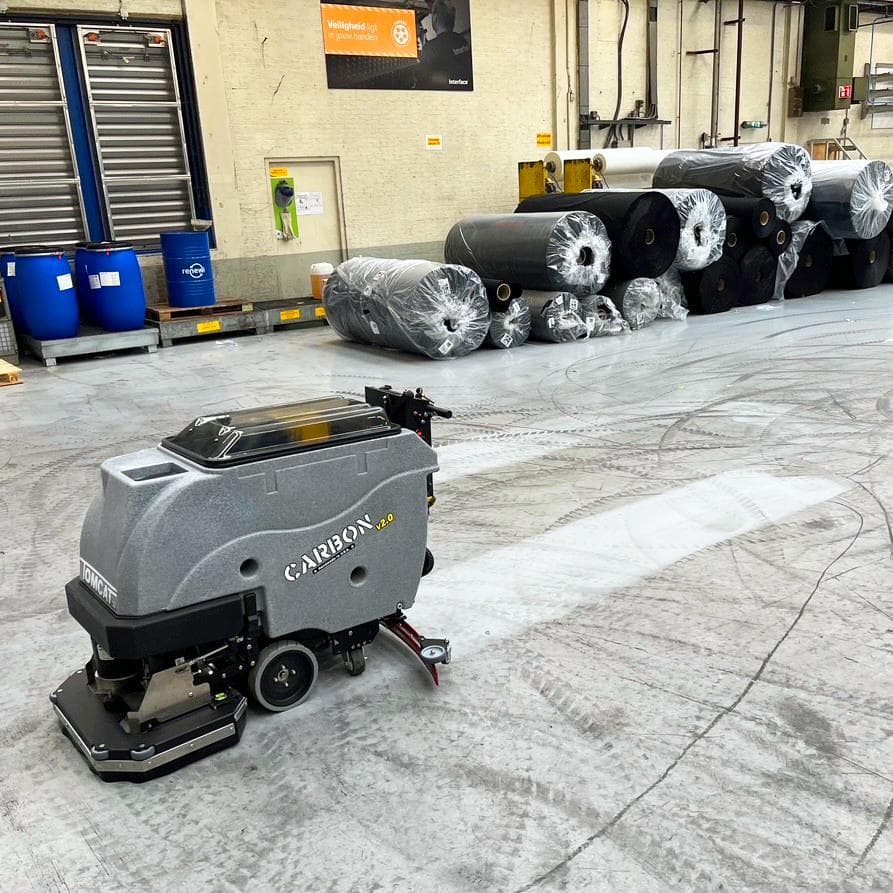

Our company “industrial equipment” origins result in the most durable equipment offered to the “commercial” sector. Warehouse and distribution centers utilize powerful material handling equipment and steel racking. The cleaning equipment needs to be built to pick up heavy soil, broken pallets, nails and also survive the inevitable collisions with fork trucks and racking.
